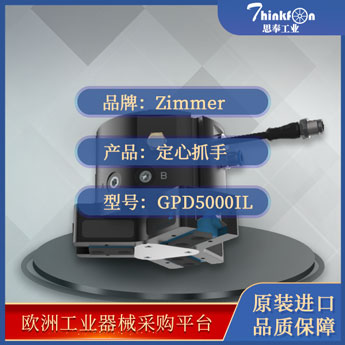

德国ZIMMER索玛 GPD5000IL系列3指定心抓手
气动驱动与 IO-Link 技术相结合
可缩短一半循环时间，可节省九成压缩空气
只通过一根气动管路和 IO-Link 电缆实现连接
集成电磁阀、传感器、状态显示、压力和温度监控装置
在可自由示教的公差范围内，在 +/- 0.05 mm 范围内进行部件识别
可以编程设置 32 条工件数据记录
防腐蚀和密封程度等级 IP64
ZIMMER索玛 GPD5000IL 各型号参数
| 型号 | 单边行程 | 闭合抓取力 | 张开抓取力 |
| GPD5006N-IL-10-A | 6 [mm] | 740 [N] | 800 [N] |
| GPD5006NC-IL-10-A | 6 [mm] | 1020 [N] | |
| GPD5006NO-IL-10-A | 6 [mm] | 1080 [N] | |
| GPD5006S-IL-10-A | 3 [mm] | 1620 [N] | 1750 [N] |
| GPD5006SC-IL-10-A | 3 [mm] | 2240 [N] | |
| GPD5006SO-IL-10-A | 3 [mm] | 2370 [N] | |
| GPD5008N-IL-10-A | 8 [mm] | 1260 [N] | 1340 [N] |
| GPD5008NC-IL-10-A | 8 [mm] | 1690 [N] | |
| GPD5008NO-IL-10-A | 8 [mm] | 1770 [N] | |
| GPD5008S-IL-10-A | 4 [mm] | 2780 [N] | 2960 [N] |
| GPD5008SC-IL-10-A | 4 [mm] | 3730 [N] | |
| GPD5008SO-IL-10-A | 4 [mm] | 3910 [N] | |
| GPD5010N-IL-10-A | 10 [mm] | 2290 [N] | 2400 [N] |
| GPD5010NC-IL-10-A | 10 [mm] | 3140 [N] | |
| GPD5010NO-IL-10-A | 10 [mm] | 3250 [N] | |
| GPD5010S-IL-10-A | 5 [mm] | 5050 [N] | 5280 [N] |
| GPD5010SC-IL-10-A | 5 [mm] | 6930 [N] | |
| GPD5010SO-IL-10-A | 5 [mm] | 7160 [N] | |
| GPD5013N-IL-10-A | 13 [mm] | 3770 [N] | 3910 [N] |
| GPD5013NC-IL-10-A | 13 [mm] | 5060 [N] | |
| GPD5013NO-IL-10-A | 13 [mm] | 5200 [N] | |
| GPD5013S-IL-10-A | 6 [mm] | 8310 [N] | 8600 [N] |
| GPD5013SC-IL-10-A | 6 [mm] | 11160 [N] | |
| GPD5013SO-IL-10-A | 6 [mm] | 11450 [N] | |
| GPD5016N-IL-10-A | 16 [mm] | 6870 [N] | 7120 [N] |
| GPD5016NC-IL-10-A | 16 [mm] | 9240 [N] | |
| GPD5016NO-IL-10-A | 16 [mm] | 9490 [N] | |
| GPD5016S-IL-10-A | 8 [mm] | 14700 [N] | 15250 [N] |
| GPD5016SC-IL-10-A | 8 [mm] | 19780 [N] | |
| GPD5016SO-IL-10-A | 8 [mm] | 20330 [N] | |
| GPD5025N-IL-10-A | 25 [mm] | 8430 [N] | 8730 [N] |
| GPD5025NC-IL-10-A | 25 [mm] | 11560 [N] | |
| GPD5025NO-IL-10-A | 25 [mm] | 11860 [N] | |
| GPD5025S-IL-10-A | 14 [mm] | 16240 [N] | 16820 [N] |
| GPD5025SC-IL-10-A | 14 [mm] | 22270 [N] | |
| GPD5025SO-IL-10-A | 14 [mm] | 22850 [N] |
