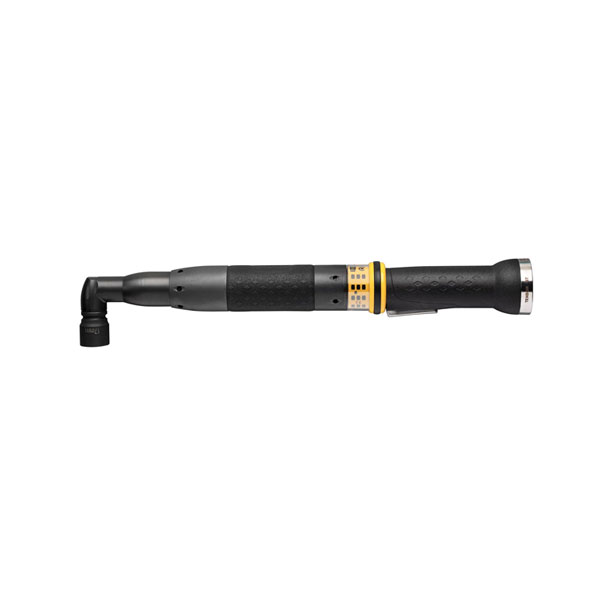

Atlas阿特拉斯Tensor ST 电动扳手
阿特拉斯Atlas电动扳手Tensor ST 优势特点
高速扳手
智能机载附件
优异的操作员舒适性
提高装配质量和安全
清晰、精准的操作员反馈
集成可配置 LED 和扬声器
重量轻，握把设计符合人体工学
更快的过程时间极大提高工作效率
Atlas电动扳手Tensor ST 各型号技术参数
| Title | ID | 型号类型 | 扭矩范围值 | 扭矩范围值 | 重量 | 速度 | 方头驱动器 | 长度 | CS 距离 | 声压 | 声音标准 | 经过 CCC 认证 | KC ID | 经过 KC 认证 | 经过 EAC 认证 | 电机电压类型 | EC 标准 | 电机功率 | 电机电压 | 张量 | WEEE | EU 指令 | 花键/安装 | 高度 | 震动值 | 震动标准 | A | A/F | B | C | D | E | F | G | H | J | R | R1 | Tube Nut type | Front part interface | 扣爪类型 | 附加声音值 | 附加振动值 | F1 | 电池 | CMIIT ID | 通信类型 | ETL 控制编号 | ETL listed | ETL 文本 | FCC ID | 空转速度 9.6 V | IC ID |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ETD ST81-120-13 | 8433216025 | Straight | 91 ft lb | 19 ft lb | 5.5 lb | 505 r/min | 1/2 inch | 510 mm | 26.5 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST81 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 2 / 2 | ||||||||||||||||||||||||||||||
| ETV ST101-1500-38-TM | 8433208470 | Angle | 1100 ft lb | 240 ft lb | 42 lb | 48 r/min | 1 1/2 inch | 719 mm | 71 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 233 mm | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||
| ETV ST101-1000-TM | 8433208405 | Angle | 734 ft lb | 184 ft lb | 24.3 lb | 77 r/min | 1 inch | 679 mm | 40 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 191 mm | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||
| ETO ST81-100-24-LI3 | 8433231198 | Tube nut | 81 ft lb | 28 ft lb | 10.1 lb | 240 r/min | 706 mm | <70 dB(A) | ISO15744 | R-REI-50A-ETVST81 | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1300 W | 200 V | ST | 4 - Large equipment >50cm | 2004/108/EC, 2006/42/EC, 2006/95/EC | <2.5 m/s² | ISO28927-2 | 46 mm | 24 mm | 20 mm | 16 mm | 71.3 mm | 50.6 mm | 160.4 mm | 64 mm | 77 mm | 20.5 mm | 33 mm | 24.6 mm | In-Line | ||||||||||||||||||||
| ETD ST101-4000-38-S-F | 8433219740 | Straight | 2950 ft lb | 735 ft lb | 48 lb | 25 r/min | 1 1/2 inch | 823 mm | 68 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 8 | ||||||||||||||||||||||||||||||
| ETV ST61-99-13 | 8433203880 | Angle | 73 ft lb | 15 ft lb | 5.1 lb | 362 r/min | 482 mm | 20 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST61-70-13 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | 6 - Electrical and Electronic Tools | 2006/42/EC, 2011/65/EU, 2014/30/EU | 58 mm | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||||
| ETV ST101-200-20-F | 8433208093 | Angle | 147 ft lb | 37 ft lb | 9.7 lb | 485 r/min | 3/4 inch | 602 mm | 28 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 47 mm | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||
| ETV ST101-370-20-F | 8433208248 | Angle | 273 ft lb | 66 ft lb | 16.1 lb | 280 r/min | 3/4 inch | 672 mm | 33 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 62 mm | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||
| ETP ST101-200-F-HAD | 8433230221 | Pistol | 145 ft lb | 45 ft lb | 11.5 lb | 396 r/min | 0/0 inch | 300 mm | 32.5 mm | <70 dB(A) | ISO15744 | R-REI-50A-ETPST101 | Yes | Yes | 3 a.c. | EN 61010-1, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 61000-6-2:2005, EN 61000-6-3:2007 A1:2011/AC:2012 | 1500 W | 200 V | ST Revo | 5 - Small equipment <50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | n/a | <2.5 m/s² | ISO28927-2 | |||||||||||||||||||||||||||||
| ETV ST101-2000-38-TM | 8433208480 | Angle | 1475 ft lb | 370 ft lb | 42 lb | 35 r/min | 1 1/2 inch | 719 mm | 71 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 231 mm | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||
| ETP ST101-6500-38-F-HA | 8433232703 | Pistol | 4794 ft lb | 1438 ft lb | 29.3 lb | 12.4 r/min | 1 1/2 inch | 451 mm | 51 mm | <70 dB(A) | ISO15744 | Yes | na | No | Yes | 3 a.c. | EN 61010-1, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 61000-6-2:2005, EN 61000-6-3:2007 A1:2011/AC:2012 | 1500 W | 200 V | ST Revo | 5 - Small equipment <50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | Wave 72 | <2.5 m/s² | ISO28927-1 | ||||||||||||||||||||||||||||
| ETV ST101-100-HAD | 8433208045 | Angle | 74 ft lb | 15 ft lb | 10.8 lb | 920 r/min | 572 mm | 23 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 71.4 mm | <2.5 m/s² | ISO28927-2 | 100 HAD | ||||||||||||||||||||||||||||
| ETV ST81-180-13 | 8433206231 | Angle | 133 ft lb | 26 ft lb | 7.0 lb | 310 r/min | 1/2 inch | 555 mm | 26 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST81 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 65 mm | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||
| ETV ST101-600-25 | 8433208356 | Angle | 443 ft lb | 111 ft lb | 23.4 lb | 151 r/min | 1 inch | 715 mm | 54.0 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 76 mm | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||
| ETD ST101-500-20-F | 8433218330 | Straight | 368 ft lb | 88 ft lb | 18.5 lb | 204 r/min | 3/4 inch | 717 mm | 33 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | - | ||||||||||||||||||||||||||||||
| ETC ST101-80-13SF-LI4 | 8433232433 | Crowfoot | 60 ft lb | 26 ft lb | 10.8 lb | 1013 r/min | 869.5 mm | <70 dB(A) | ISO15744 | Yes | na | No | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | 4 - Large equipment >50cm | 2004/108/EC, 2006/42/EC, 2006/95/EC | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||||||
| ETV ST81-180-13-INTEL | 8433206280 | Angle | 133 ft lb | 26 ft lb | 310 r/min | 1/2 inch | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST81 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||||||
| ETD ST101-500-20-T40-F | 8433218349 | Straight | 368 ft lb | 88 ft lb | 18.5 lb | 204 r/min | 3/4 inch | 769 mm | 37 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | - | ||||||||||||||||||||||||||||||
| ETV ST101-1000-TM-F | 8433208410 | Angle | 734 ft lb | 184 ft lb | 24.3 lb | 77 r/min | 1 inch | 679 mm | 40 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 191 mm | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||
| ETD ST101-150-13-T25-S | 8433218175 | Straight | 109 ft lb | 22 ft lb | 16.5 lb | 685 r/min | 1/2 inch | 656 mm | 33 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 6 | ||||||||||||||||||||||||||||||
| ETD ST81-120-13-T25 | 8433215953 | Straight | 91 ft lb | 19 ft lb | 5.8 lb | 505 r/min | 1/2 inch | 538 mm | 26.5 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST81 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 3 / 5 | ||||||||||||||||||||||||||||||
| ETV ST101-180-13 | 8433208052 | Angle | 133 ft lb | 37 ft lb | 9.3 lb | 575 r/min | 1/2 inch | 600 mm | 25.3 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 47 mm | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||
| ETC ST81-60-14-LI3 | 8433232296 | Crowfoot | 44 ft lb | 16 ft lb | 880 r/min | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST81 | Yes | Yes | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | <2.5 m/s² | ISO28927-2 | In-Line | |||||||||||||||||||||||||||||||||
| ETV ST101-370-INTEL | 8433208240 | Angle | 273 ft lb | 82 ft lb | 18.5 lb | 280 r/min | 3/4 inch | 672 mm | 33 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 113 mm | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||
| ETV ST81-100-HAD | 8433205636 | Angle | 80 ft lb | 15 ft lb | 540 r/min | 1/2 inch | 522 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST81 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | <2.5 m/s² | ISO28927-2 | 100 HAD | ||||||||||||||||||||||||||||||
| ETV ST101-370-FS | 8433208238 | Angle | 273 ft lb | 66 ft lb | 16.5 lb | 280 r/min | 672 mm | 33 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 77 mm | <2.5 m/s² | ISO28927-2 | 370 FS | ||||||||||||||||||||||||||||
| ETV ST81-180-HAD | 8433206260 | Angle | 133 ft lb | 26 ft lb | 7.0 lb | 310 r/min | 560 mm | 26 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST81 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 80 mm | <2.5 m/s² | ISO28927-2 | 200 HAD | ||||||||||||||||||||||||||||
| ETV ST101-180-HAD | 8433208088 | Yes | R-REI-50A-ETVST101 | Yes | 1500 W | 4 - Large equipment >50cm | |||||||||||||||||||||||||||||||||||||||||||||||
| ETV ST81-180-B13 | 8433206243 | Angle | 133 ft lb | 26 ft lb | 7.0 lb | 310 r/min | 1/2 inch | 555 mm | 25.5 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST81 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 65 mm | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||
| ETD ST101-500-20 | 8433218328 | Straight | 368 ft lb | 88 ft lb | 18.5 lb | 204 r/min | 3/4 inch | 717 mm | 33 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | - | ||||||||||||||||||||||||||||||
| ETV ST101-4000-38-TM-F | 8433208490 | Angle | 2950 ft lb | 834 ft lb | 47 lb | 21.8 r/min | 1 1/2 inch | 710 mm | 71 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | 2004/108/EC, 2006/42/EC, 2006/95/EC | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 350 mm | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||
| ETD ST101-100-13 | 8433217900 | Straight | 73 ft lb | 18 ft lb | 7.0 lb | 1043 r/min | 1/2 inch | 631 mm | 30.5 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | - | ||||||||||||||||||||||||||||||
| ETP ST32-20-10 | 8433221695 | Pistol | 15.0 ft lb | 3.6 ft lb | 2 lb | 677 r/min | 3/8 inch | 235 mm | <70 dB(A) | ISO15744 | Yes | na | No | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1400 W | 200 V | ST | 5 - Small equipment <50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 179 mm | <2.5 m/s² | ISO28927-2 | |||||||||||||||||||||||||||||
| ETV ST101-270-20-M | 8433208182 | Angle | 199 ft lb | 48 ft lb | 18.8 lb | 380 r/min | 3/4 inch | 763 mm | 33 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 6 - Electrical and Electronic Tools | 2006/42/EC, 2011/65/EU, 2014/30/EU | 62 mm | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||
| ETV ST101-1500-25-TM-F | 8433208465 | Angle | 1106 ft lb | 240 ft lb | 26 lb | 23 r/min | 1 inch | 625 mm | 43 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 257 mm | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||
| ETV ST81-50-HAD | 8433205280 | Angle | 40 ft lb | 12 ft lb | 5.0 lb | 1090 r/min | 473 mm | 18.5 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST81 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 5 - Small equipment <50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 80 mm | <2.5 m/s² | ISO28927-2 | 50 HAD | ||||||||||||||||||||||||||||
| ETP ST101-8000-38-F-HA | 8433232803 | Pistol | 5900 ft lb | 1770 ft lb | 29.3 lb | 10 r/min | 1 1/2 inch | 451 mm | 51 mm | <70 dB(A) | ISO15744 | Yes | na | No | Yes | 3 a.c. | EN 61010-1, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 61000-6-2:2005, EN 61000-6-3:2007 A1:2011/AC:2012 | 1500 W | 200 V | ST Revo | 5 - Small equipment <50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | Wave 72 | <2.5 m/s² | ISO28927-1 | ||||||||||||||||||||||||||||
| ETP ST101-300-20-F | 8433230302 | Pistol | 221 ft lb | 66 ft lb | 11.5 lb | 293 r/min | 3/4 inch | 303 mm | 32.5 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETPST101 | Yes | Yes | 3 a.c. | EN 61010-1, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 61000-6-2:2005, EN 61000-6-3:2007 A1:2011/AC:2012 | 1500 W | 200 V | ST Revo | 5 - Small equipment <50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 3 | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||
| ETD ST101-150-20-F | 8433218140 | Straight | 109 ft lb | 22 ft lb | 9.3 lb | 685 r/min | 3/4 inch | 706 mm | 33 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | - | ||||||||||||||||||||||||||||||
| ETV ST81-70-13 | 8433205348 | Angle | 58 ft lb | 15 ft lb | 5.0 lb | 790 r/min | 1/2 inch | 485 mm | 20 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST81 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 5 - Small equipment <50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 58 mm | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||
| ETV ST101-450-20-F | 8433208290 | Angle | 332 ft lb | 81 ft lb | 23.4 lb | 230 r/min | 3/4 inch | 715 mm | 54 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 76 mm | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||
| ETO ST101-290-60-LO3 | 8433232376 | Crowfoot | 232 ft lb | 47 ft lb | 24.8 lb | 230 r/min | 779 mm | <70 dB(A) | ISO15744 | Yes | na | No | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | <2.5 m/s² | ISO28927-2 | Offset | |||||||||||||||||||||||||||||||
| ETD ST81-90-13-T25 | 8433215725 | Straight | 70 ft lb | 15 ft lb | 5.8 lb | 675 r/min | 1/2 inch | 538 mm | 26.5 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST81 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 3 / 5 | ||||||||||||||||||||||||||||||
| ETD ST101-200-20-T40-F | 8433218245 | Straight | 146 ft lb | 36 ft lb | 16.5 lb | 500 r/min | 3/4 inch | 756 mm | 33 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | - | ||||||||||||||||||||||||||||||
| ETD ST101-4000-38-T50F | 8433218742 | Straight | 2950 ft lb | 735 ft lb | 48 lb | 25 r/min | 1 1/2 inch | 921 mm | 68 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | - | ||||||||||||||||||||||||||||||
| ETV ST101-180-B13 | 8433208056 | Angle | 133 ft lb | 37 ft lb | 9.3 lb | 575 r/min | 1/2 inch | 600 mm | 25 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 47 mm | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||
| ETD ST101-200-20-T25 | 8433218215 | Straight | 146 ft lb | 36 ft lb | 16.3 lb | 500 r/min | 3/4 inch | 743 mm | 33 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | - | ||||||||||||||||||||||||||||||
| ETV ST101-370-20 | 8433208226 | Angle | 273 ft lb | 66 ft lb | 16.1 lb | 280 r/min | 3/4 inch | 672 mm | 32.9 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 62 mm | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||
| ETV ST101-200-HAD-F | 8433208104 | Angle | 147 ft lb | 37 ft lb | 11.2 lb | 485 r/min | 602 mm | 28 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 80.2 mm | <2.5 m/s² | ISO28927-2 | 200 HAD | ||||||||||||||||||||||||||||
| ETV ST101-600-25-F | 8433208369 | Angle | 443 ft lb | 111 ft lb | 23.4 lb | 150 r/min | 1 inch | 715 mm | 54 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 76 mm | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||
| ETV ST81-200-FS | 8433206459 | Angle | 154 ft lb | 30 ft lb | 7.0 lb | 300 r/min | 557 mm | 28 mm | <70 dB(A) | ISO15744 | Yes | na | No | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 58 mm | <2.5 m/s² | ISO28927-2 | 200 FS | ||||||||||||||||||||||||||||
| ETP ST32-10-I06-BCR | 8433221473 | Pistol | 8.0 ft lb | 2.2 ft lb | 2.1 lb | 1210 r/min | 1/4 inch | 197 mm | <70 dB(A) | ISO15744 | Yes | na | No | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1400 W | 200 V | ST | 5 - Small equipment <50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 205 mm | <2.5 m/s² | ISO28927-2 | |||||||||||||||||||||||||||||
| ETC ST81-120-15-LI3 | 8433232048 | Crowfoot | 88.4 ft lb | 20.6 ft lb | 9.4 lb | 357 r/min | 703 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST81 | Yes | Yes | 3 a.c. | ISO11148-6:2010 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC | <2.5 m/s² | ISO28927-2 | 19 mm | In-Line | |||||||||||||||||||||||||||||
| ETD ST101-200-20 | 8433218205 | Straight | 146 ft lb | 36 ft lb | 16.3 lb | 500 r/min | 3/4 inch | 706 mm | 33 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | - | ||||||||||||||||||||||||||||||
| ETP ST101-750-25-F | 8433230752 | Pistol | 550 ft lb | 160 ft lb | 13.7 lb | 132 r/min | 1 inch | 353 mm | 33.5 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETPST101 | Yes | Yes | 3 a.c. | EN 61010-1, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 61000-6-2:2005, EN 61000-6-3:2007 A1:2011/AC:2012 | 1500 W | 200 V | ST Revo | 5 - Small equipment <50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 5 | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||
| ETV ST81-50-10-F | 8433205160 | Angle | 40 ft lb | 12 ft lb | 3.9 lb | 1090 r/min | 3/8 inch | 473 mm | ISO15744 | Yes | R-REI-50A-ETVST81 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 5 - Small equipment <50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 48 mm | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||||
| ETV ST101-270-INTEL | 8433208140 | Angle | 199 ft lb | 48 ft lb | 18.5 lb | 380 r/min | 3/4 inch | 672 mm | 33 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 113 mm | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||
| ETD ST101-150-20-T25 | 8433218143 | Straight | 109 ft lb | 22 ft lb | 9.5 lb | 685 r/min | 3/4 inch | 741 mm | 30.5 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ETD ST101-150-20-T25 | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | <2.5 m/s² | ISO28927-2 | |||||||||||||||||||||||||||||
| ETC ST81-136-17-LO5 | 8433232356 | Crowfoot | 100 ft lb | 23 ft lb | 7.7 lb | 217 r/min | 712 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST81 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | 4 - Large equipment >50cm | 2004/108/EC, 2006/42/EC, 2006/95/EC | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||||||
| ETP ST101-2400-25-F-HA | 8433232603 | Pistol | 1770 ft lb | 531 ft lb | 16.5 lb | 31.7 r/min | 1 inch | 399.6 mm | 35 mm | 74 dB(A) | ISO15744 | No | R-REI-50A-ETPST101 | Yes | Yes | 3 a.c. | EN 61010-1, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 61000-6-2:2005, EN 61000-6-3:2007 A1:2011/AC:2012 | 1500 W | 200 V | ST Revo | 5 - Small equipment <50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | Wave 47 | <2.5 m/s² | ISO28927-1 | ||||||||||||||||||||||||||||
| ETV ST101-450-20-SH | 8433208279 | Angle | 332 ft lb | 81 ft lb | 230 r/min | 3/4 inch | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||||||
| ETD ST101-120-13-T25-F | 8433218048 | Straight | 88 ft lb | 22 ft lb | 7.3 lb | 873 r/min | 1/2 inch | 656 mm | 30.5 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | - | ||||||||||||||||||||||||||||||
| ETV ST81-100-B13 | 8433205824 | Angle | 80 ft lb | 15 ft lb | 5.9 lb | 540 r/min | 1/2 inch | 522 mm | 22.5 mm | <70 dB(A) | ISO15744 | Yes | na | No | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 60 mm | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||
| ETV ST101-200-20 | 8433208092 | Angle | 147 ft lb | 37 ft lb | 9.7 lb | 485 r/min | 3/4 inch | 602 mm | 27.5 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 47 mm | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||
| ETD ST101-300-20-F | 8433218272 | Straight | 221 ft lb | 51 ft lb | 16.3 lb | 345 r/min | 3/4 inch | 706 mm | 33 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | - | ||||||||||||||||||||||||||||||
| ETV ST101-500-20-SH | 8433208265 | Angle | 370 ft lb | 75 ft lb | 16.1 lb | 140 r/min | 3/4 inch | 670 mm | 33 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 85 mm | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||
| ETV ST81-70-13-F | 8433205355 | Angle | 58 ft lb | 15 ft lb | 5.0 lb | 790 r/min | 1/2 inch | 485 mm | 20 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST81 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 5 - Small equipment <50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 58 mm | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||
| ETD ST101-2000-38-S-F | 8433219722 | Straight | 1475 ft lb | 370 ft lb | 37 lb | 48 r/min | 1 1/2 inch | 742 mm | 68 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 8 | ||||||||||||||||||||||||||||||
| ETV ST81-70-FS | 8433205508 | Angle | 58 ft lb | 15 ft lb | 5.0 lb | 790 r/min | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST81 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2004/108/EC, 2006/42/EC, 2006/95/EC | <2.5 m/s² | ISO28927-2 | 70 FS | |||||||||||||||||||||||||||||||
| ETP ST32-05-I06 | 8433221219 | Pistol | 3.6 ft lb | 0.7 ft lb | 1.7 lb | 2820 r/min | 1/4 inch | 197 mm | <70 dB(A) | ISO15744 | Yes | na | No | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1400 W | 200 V | ST | 5 - Small equipment <50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 179 mm | <2.5 m/s² | ISO28927-2 | |||||||||||||||||||||||||||||
| ETV ST101-180-HAD | 8433208089 | Angle | 133 ft lb | 37 ft lb | 10.8 lb | 575 r/min | 600 mm | 26 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 80.1 mm | <2.5 m/s² | ISO28927-2 | 200 HAD | ||||||||||||||||||||||||||||
| ETP ST101-4000-25-F-HA | 8433232403 | Pistol | 2950 ft lb | 885 ft lb | 24.5 lb | 16 r/min | 1 inch | 464 mm | 42 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETPST101 | Yes | Yes | 3 a.c. | EN 61010-1, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 61000-6-2:2005, EN 61000-6-3:2007 A1:2011/AC:2012 | 1500 W | 200 V | ST Revo | 5 - Small equipment <50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | Wave 70 | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||
| ETD ST101-2000-38T50SF | 8433219720 | Straight | 1475 ft lb | 370 ft lb | 37 lb | 48 r/min | 1 1/2 inch | 840 mm | 68 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 8 | ||||||||||||||||||||||||||||||
| ETC ST81-140-15HBH-LO5 | 8433232413 | Crowfoot | 103 ft lb | 21 ft lb | 10.6 lb | 300 r/min | 675 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST81 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | <2.5 m/s² | ISO28927-2 | Offset | |||||||||||||||||||||||||||||||
| ETV ST101-100-INTEL | 8433208028 | Angle | 74 ft lb | 15 ft lb | 10.2 lb | 920 r/min | 1/2 inch | 572 mm | 23 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 82 mm | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||
| ETD ST101-1200-25-S | 8433219610 | Straight | 885 ft lb | 220 ft lb | 26 lb | 81 r/min | 1 inch | 787 mm | 47 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 7 | ||||||||||||||||||||||||||||||
| ETV ST81-100-13 | 8433205682 | Angle | 80 ft lb | 15 ft lb | 5.9 lb | 540 r/min | 1/2 inch | 522 mm | 22.5 mm | <70 dB(A) | ISO15744 | Yes | na | No | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 60 mm | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||
| ETP ST101-2000-38-F | 8433232202 | Pistol | 1475 ft lb | 442 ft lb | 25.4 lb | 38 r/min | 1 1/2 inch | 454 mm | 48 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETPST101 | Yes | Yes | 3 a.c. | EN 61000-6-2:2005, EN 61000-6-4:2007 A1:2011/AC:2012, EN 61010-1, EN 55014-1:2017, EN 55014-2:2015 | 1500 W | 200 V | ST Revo | 5 - Small equipment <50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 7 | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||
| ETV ST81-150-13 | 8433206012 | Angle | 117 ft lb | 22 ft lb | 7.0 lb | 380 r/min | 1/2 inch | 555 mm | 26 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST81 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 65 mm | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||
| ETD ST101-100-13-T25 | 8433217910 | Straight | 73 ft lb | 18 ft lb | 7.3 lb | 1043 r/min | 1/2 inch | 656 mm | 30.5 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | - | ||||||||||||||||||||||||||||||
| ETD ST101-100-13-T25-F | 8433217915 | Straight | 73 ft lb | 18 ft lb | 7.3 lb | 1043 r/min | 1/2 inch | 656 mm | 30.5 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | - | ||||||||||||||||||||||||||||||
| ETC ST81-80-14-E5-LO3 | 8433231849 | Crowfoot | 59 ft lb | 11.8 ft lb | 540 r/min | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST81 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | <2.5 m/s² | ISO28927-2 | Offset | ||||||||||||||||||||||||||||||||
| ETD ST101-120-13 | 8433218022 | Straight | 88 ft lb | 22 ft lb | 7.0 lb | 875 r/min | 1/2 inch | 631 mm | 30.5 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | - | ||||||||||||||||||||||||||||||
| ETV ST101-270-20 | 8433208123 | Angle | 199 ft lb | 48 ft lb | 16.1 lb | 380 r/min | 3/4 inch | 672 mm | 32.9 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 62 mm | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||
| ETV ST101-600-HAD | 8433208390 | Angle | 443 ft lb | 111 ft lb | 25.8 lb | 150 r/min | 715 mm | 54 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 104.2 mm | <2.5 m/s² | ISO28927-2 | 600 HAD | ||||||||||||||||||||||||||||
| ETV ST101-370-HAD | 8433208255 | Angle | 273 ft lb | 66 ft lb | 18.3 lb | 280 r/min | 672 mm | 33 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 103.5 mm | <2.5 m/s² | ISO28927-2 | 370 HAD | ||||||||||||||||||||||||||||
| ETD ST101-1200-25T50SF | 8433219612 | Straight | 885 ft lb | 220 ft lb | 26 lb | 81 r/min | 1 inch | 844 mm | 47 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 7 | ||||||||||||||||||||||||||||||
| ETC ST101-200-22-LO5 | 8433232362 | Crowfoot | 151.9 ft lb | 38.3 ft lb | 280 r/min | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 300328:2007, EN 60745-1, EN 60745-2-2, EN 61000-6-2:2005, EN 61000-6-4:2007 | 1500 W | 200 V | ST101 | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU, 2014/53/EU | <2.5 m/s² | ISO28927-2 | Offset | ||||||||||||||||||||||||||||||||
| ETD ST101-300-20-T40 | 8433218282 | Straight | 221 ft lb | 51 ft lb | 16.5 lb | 345 r/min | 3/4 inch | 756 mm | 33 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | - | ||||||||||||||||||||||||||||||
| ETV ST81-50-10 | 8433205155 | Angle | 40 ft lb | 12 ft lb | 3.9 lb | 1090 r/min | 3/8 inch | 473 mm | 18 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST81 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 5 - Small equipment <50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 48 mm | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||
| ETD ST81-90-13 | 8433215814 | Straight | 70 ft lb | 15 ft lb | 5.5 lb | 675 r/min | 1/2 inch | 510 mm | 26.5 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST81 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 2 / 2 | ||||||||||||||||||||||||||||||
| ETD ST101-500-20-T40 | 8433218338 | Straight | 368 ft lb | 88 ft lb | 18.5 lb | 204 r/min | 3/4 inch | 768 mm | 37 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | - | ||||||||||||||||||||||||||||||
| ETD ST81-70-13-T25 | 8433215498 | Straight | 51 ft lb | 12 ft lb | 5.8 lb | 880 r/min | 1/2 inch | 538 mm | 26.5 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST81 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 3 / 5 | ||||||||||||||||||||||||||||||
| ETP ST101-5500-38-F-HA | 8433232503 | Pistol | 4057 ft lb | 1217 ft lb | 29.3 lb | 17 r/min | 1 1/2 inch | 451 mm | 51 mm | <70 dB(A) | ISO15744 | Yes | na | No | Yes | 3 a.c. | EN 61010-1, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 61000-6-2:2005, EN 61000-6-3:2007 A1:2011/AC:2012 | 1500 W | 200 V | ST Revo | 5 - Small equipment <50cm | 2006/42/EU, 2011/65/EU, 2014/30/EU | Wave 72 | <2.5 m/s² | ISO28927-1 | ||||||||||||||||||||||||||||
| ETP ST101-4000-38-F | 8433232402 | Pistol | 2950 ft lb | 885 ft lb | 33 lb | 20 r/min | 1 1/2 inch | 481 mm | 59 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETPST101 | Yes | Yes | 3 a.c. | EN 61010-1, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 61000-6-2:2005, EN 61000-6-3:2007 A1:2011/AC:2012 | 1500 W | 200 V | ST Revo | 5 - Small equipment <50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 8 | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||
| ETV ST101-200-20-SH | 8433208199 | R-REI-50A-ETVST101 | Yes | 1500 W | |||||||||||||||||||||||||||||||||||||||||||||||||
| ETD ST101-120-13-T25 | 8433218032 | Straight | 88 ft lb | 22 ft lb | 7.3 lb | 873 r/min | 1/2 inch | 656 mm | 30.5 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | - | ||||||||||||||||||||||||||||||
| ETV ST101-370-HAD-F | 8433208258 | Angle | 273 ft lb | 66 ft lb | 18.3 lb | 280 r/min | 672 mm | 33 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 103.5 mm | <2.5 m/s² | ISO28927-2 | 370 HAD | ||||||||||||||||||||||||||||
| ETV ST101-200-INTEL | 8433208101 | Angle | 147 ft lb | 37 ft lb | 10.6 lb | 485 r/min | 1/2 inch | 602 mm | 28 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 90 mm | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||
| ETC ST101-180-19-LO5 | 8433232264 | Crowfoot | 132.8 ft lb | 33.9 ft lb | 380 r/min | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | <2.5 m/s² | ISO28927-2 | Offset | ||||||||||||||||||||||||||||||||||
| ETV ST81-120-13 | 8433205683 | Angle | 88 ft lb | 27 ft lb | 6 lb | 470 r/min | 560 mm | 25.5 mm | <70 dB(A) | ISO15744 | R-REI-50A-ETVST81 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 65 mm | <2.5 m/s² | ISO28927-2 | |||||||||||||||||||||||||||||||
| ETV ST101-200-FS | 8433208096 | Angle | 147 ft lb | 37 ft lb | 9.7 lb | 485 r/min | 602 mm | 28 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 58 mm | <2.5 m/s² | ISO28927-2 | 200 FS | ||||||||||||||||||||||||||||
| ETV ST101-450-HAD | 8433208297 | Angle | 332 ft lb | 81 ft lb | 25.8 lb | 230 r/min | 715 mm | 54 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 104.2 mm | <2.5 m/s² | ISO28927-2 | 600 HAD | ||||||||||||||||||||||||||||
| ETD ST81-30-10 | 8433215193 | Straight | 22 ft lb | 7 ft lb | 4.0 lb | 1700 r/min | 3/8 inch | 450 mm | 24 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST81 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 5 - Small equipment <50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | – / 1 | ||||||||||||||||||||||||||||||
| ETV ST81-70-M75-T25 | 8433205585 | Angle | 58 ft lb | 15 ft lb | 12.7 lb | 790 r/min | 1/2 inch | 566 mm | 40 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST81 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 196 mm | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||
| ETV ST101-100-13 | 8433208010 | Angle | 74 ft lb | 15 ft lb | 9.3 lb | 920 r/min | 1/2 inch | 572 mm | 22.5 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 44 mm | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||
| ETD ST101-1200-25-F | 8433218610 | Straight | 885 ft lb | 220 ft lb | 26 lb | 81 r/min | 1 inch | 787 mm | 47 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | - | ||||||||||||||||||||||||||||||
| ETV ST101-100-B13 | 8433208020 | Angle | 74 ft lb | 15 ft lb | 9.3 lb | 920 r/min | 1/2 inch | 572 mm | 23 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 44 mm | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||
| ETD ST101-200-20-F | 8433218210 | Straight | 146 ft lb | 36 ft lb | 16.3 lb | 500 r/min | 3/4 inch | 706 mm | 33 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | - | ||||||||||||||||||||||||||||||
| ETV ST81-200-20 | 8433206342 | Angle | 154 ft lb | 30 ft lb | 7.0 lb | 300 r/min | 3/4 inch | 556 mm | 27 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST81 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 70 mm | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||
| ETD ST101-750-25-T50-F | 8433218469 | Straight | 553 ft lb | 109 ft lb | 20.3 lb | 143 r/min | 1 inch | 769 mm | 45 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | - | ||||||||||||||||||||||||||||||
| ETV ST31-10-10-BCR | 8433201415 | Angle | 8.8 ft lb | 2.2 ft lb | 1020 r/min | 3/8 inch | 381 mm | <70 dB(A) | ISO15744 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1050 W | 200 V | ST | 5 - Small equipment <50cm | 2004/108/EC, 2006/42/EC, 2006/95/EC | <2.5 m/s² | ISO28927-2 | |||||||||||||||||||||||||||||||||
| ETD ST101-150-20 | 8433218136 | Straight | 109 ft lb | 22 ft lb | 9.3 lb | 685 r/min | 3/4 inch | 706 mm | 33 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | - | ||||||||||||||||||||||||||||||
| ETP ST32-20-I06-BCR | 8433221726 | Pistol | 15.0 ft lb | 3.6 ft lb | 2.3 lb | 677 r/min | 1/4 inch | 237 mm | <70 dB(A) | ISO15744 | Yes | na | No | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1400 W | 200 V | ST | 5 - Small equipment <50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 205 mm | <2.5 m/s² | ISO28927-2 | |||||||||||||||||||||||||||||
| ETV ST61-50-10-M75-T15 | 8433203455 | Angle | 40 ft lb | 7 ft lb | 5.5 lb | 655 r/min | 3/8 inch | 528 mm | 18.25 mm | <70 dB(A) | ISO15744 | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 6 - Electrical and Electronic Tools | 2006/42/EC, 2011/65/EU, 2014/30/EU | 91 mm | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||||||
| ETD ST101-4000-38-F | 8433218740 | Straight | 2950 ft lb | 735 ft lb | 48 lb | 25 r/min | 1 1/2 inch | 823 mm | 68 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | - | ||||||||||||||||||||||||||||||
| ETP ST101-500-20-F | 8433230502 | Pistol | 365 ft lb | 110 ft lb | 13 lb | 186 r/min | 3/4 inch | 334 mm | 33.5 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETPST101 | Yes | Yes | 3 a.c. | EN 61010-1, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 61000-6-2:2005, EN 61000-6-3:2007 A1:2011/AC:2012 | 1500 W | 200 V | ST Revo | 5 - Small equipment <50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 4 | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||
| ETV ST101-600-TM-F | 8433208396 | Angle | 443 ft lb | 111 ft lb | 16.8 lb | 132 r/min | 3/4 inch | 613 mm | 34 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 143 mm | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||
| ETP ST101-1000-25-F | 8433231002 | Pistol | 735 ft lb | 220 ft lb | 14.1 lb | 99 r/min | 1 inch | 364 mm | 33.5 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETPST101 | Yes | Yes | 3 a.c. | EN 61010-1, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 61000-6-2:2005, EN 61000-6-3:2007 A1:2011/AC:2012 | 1500 W | 200 V | ST Revo | 5 - Small equipment <50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 5 | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||
| ETV ST81-200-HAD-F | 8433206510 | Angle | 154 ft lb | 30 ft lb | 7.7 lb | 300 r/min | 597 mm | 28 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST81 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 91 mm | <2.5 m/s² | ISO28927-2 | 200 HAD | |||||||||||||||||||||||||||||
| ETD ST101-200-20-T40 | 8433218223 | Straight | 146 ft lb | 36 ft lb | 16.5 lb | 500 r/min | 3/4 inch | 756 mm | 33 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | - | ||||||||||||||||||||||||||||||
| ETP ST101-1300-20-F-HA | 8433231303 | Pistol | 959 ft lb | 288 ft lb | 14.1 lb | 65 r/min | 3/4 inch | 348 mm | 34 mm | <70 dB(A) | ISO15744 | Yes | na | No | Yes | 3 a.c. | EN 61010-1, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 61000-6-2:2005, EN 61000-6-3:2007 A1:2011/AC:2012 | 1500 W | 200 V | ST Revo | 5 - Small equipment <50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | Wave 40 | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||
| ETD ST101-2000-38 | 8433218722 | Straight | 1475 ft lb | 370 ft lb | 37 lb | 48 r/min | 1 1/2 inch | 742 mm | 68 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | - | ||||||||||||||||||||||||||||||
| ETP SR31-25-I06 | 8436430021 | Pistol | 18.4 ft lb | 3.7 ft lb | 1.8 lb | 2010 r/min | 1/4 inch | 210 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETPSR31-20-10 | Yes | Yes | 3 a.c. | EN 61010-1, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 61000-6-2:2005, EN 61000-6-3:2007 A1:2011/AC:2012 | 1400 W | 200 V | SR | 5 - Small equipment <50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 179 mm | <2.5 m/s² | ISO28927-1 | 85 dB(A) | 25 m/s² | |||||||||||||||||||||||||||
| ETD ST101-500-20-T40-S | 8433218398 | Straight | 368 ft lb | 88 ft lb | 17.6 lb | 204 r/min | 3/4 inch | 680 mm | 37 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 6 | ||||||||||||||||||||||||||||||
| ETV ST81-100-FS | 8433205868 | Angle | 80 ft lb | 15 ft lb | 5.9 lb | 540 r/min | 522 mm | 23 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST81 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 51 mm | <2.5 m/s² | ISO28927-2 | 70 FS | ||||||||||||||||||||||||||||
| ETD ST101-150-20-T40F | 8433218159 | Straight | 109 ft lb | 22 ft lb | 9.7 lb | 685 r/min | 3/4 inch | 656 mm | 30.5 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | - | ||||||||||||||||||||||||||||||
| ETV ST101-270-HAD-F | 8433208195 | Angle | 199 ft lb | 48 ft lb | 18.3 lb | 380 r/min | 672 mm | 33 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2004/108/EC, 2006/42/EC, 2006/95/EC | 103.5 mm | <2.5 m/s² | ISO28927-2 | 370 HAD | ||||||||||||||||||||||||||||
| ETD ST101-750-25-T50 | 8433218456 | Straight | 553 ft lb | 109 ft lb | 20.3 lb | 143 r/min | 1 inch | 727 mm | 45 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | - | ||||||||||||||||||||||||||||||
| ETP ST32-20-I06 | 8433221711 | Pistol | 15.0 ft lb | 3.6 ft lb | 2 lb | 677 r/min | 1/4 inch | 235 mm | <70 dB(A) | ISO15744 | Yes | na | No | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1400 W | 200 V | ST | 5 - Small equipment <50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 179 mm | <2.5 m/s² | ISO28927-2 | |||||||||||||||||||||||||||||
| ETP ST101-1500-25-F | 8433232152 | Pistol | 1106 ft lb | 332 ft lb | 19.4 lb | 47 r/min | 1 inch | 402 mm | 43.5 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETPST101 | Yes | Yes | 3 a.c. | EN 61010-1, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 61000-6-2:2005, EN 61000-6-3:2007 A1:2011/AC:2012 | 1500 W | 200 V | ST Revo | 5 - Small equipment <50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 9 | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||
| ETD ST81-70-13 | 8433215603 | Straight | 51 ft lb | 12 ft lb | 5.5 lb | 880 r/min | 1/2 inch | 510 mm | 26.5 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST81 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 2 / 2 | ||||||||||||||||||||||||||||||
| ETP ST32-05-10 | 8433221103 | Pistol | 3.6 ft lb | 0.7 ft lb | 1.7 lb | 2820 r/min | 3/8 inch | 197 mm | <70 dB(A) | ISO15744 | Yes | na | No | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1400 W | 200 V | ST | 5 - Small equipment <50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 179 mm | <2.5 m/s² | ISO28927-2 | |||||||||||||||||||||||||||||
| ETV ST81-200-HAD | 8433206509 | Angle | 154 ft lb | 30 ft lb | 7.0 lb | 300 r/min | 561 mm | 28 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST81 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 81 mm | <2.5 m/s² | ISO28927-2 | 200 HAD | ||||||||||||||||||||||||||||
| ETC ST101-200-17-LO3 | 8433232076 | Crowfoot | 147 ft lb | 33 ft lb | 20.6 lb | 380 r/min | 730.4 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||||||
| ETD ST81-50-13 | 8433215334 | Straight | 37 ft lb | 12 ft lb | 4.6 lb | 1230 r/min | 1/2 inch | 493 mm | 24 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST81 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 5 - Small equipment <50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 2 / 2 | ||||||||||||||||||||||||||||||
| ETV ST81-180-FS | 8433206250 | Angle | 133 ft lb | 26 ft lb | 7.0 lb | 310 r/min | 555 mm | 26 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST81 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 58 mm | <2.5 m/s² | ISO28927-2 | 200 FS | ||||||||||||||||||||||||||||
| ETV ST101-100-13-F | 8433208030 | Angle | 74 ft lb | 15 ft lb | 9.3 lb | 920 r/min | 1/2 inch | 572 mm | 23 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 44 mm | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||
| ETP ST32-10-I06 | 8433221463 | Pistol | 8.0 ft lb | 2.2 ft lb | 1.8 lb | 1210 r/min | 1/4 inch | 197 mm | <70 dB(A) | ISO15744 | Yes | na | No | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1400 W | 200 V | ST | 5 - Small equipment <50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 179 mm | <2.5 m/s² | ISO28927-2 | |||||||||||||||||||||||||||||
| ETO ST61-30-DH14-LI3 | 8433231824 | Tube nut | 24.3 ft lb | 4.4 ft lb | 5.1 lb | 772 r/min | 544 mm | <70 dB(A) | ISO15744 | Yes | MSIP-REI-50A-ETV-ST | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1200 W | 200 V | ETO ST61-30-DH14-LI3 | 6 - Electrical and Electronic Tools | 2006/42/EC, 2011/65/EU, 2014/30/EU | <2.5 m/s² | ISO28927-2 | Inline | ||||||||||||||||||||||||||||||
| ETV ST81-150-B13 | 8433206097 | Angle | 117 ft lb | 22 ft lb | 7.0 lb | 380 r/min | 1/2 inch | 555 mm | 25.5 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST81 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 65 mm | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||
| ETD ST101-1000-25-T50 | 8433218578 | Straight | 737 ft lb | 184 ft lb | 21.6 lb | 100 r/min | 1 inch | 754 mm | 45 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | - | ||||||||||||||||||||||||||||||
| ETD ST101-100-13-F | 8433217905 | Straight | 73 ft lb | 18 ft lb | 7.0 lb | 1043 r/min | 1/2 inch | 631 mm | 30.5 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2004/108/EC, 2006/42/EC, 2006/95/EC | - | ||||||||||||||||||||||||||||||
| ETD ST101-1000-25-T50F | 8433218589 | Straight | 737 ft lb | 184 ft lb | 21.6 lb | 100 r/min | 1 inch | 755 mm | 45 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | - | ||||||||||||||||||||||||||||||
| ETD ST101-1200-25-T50F | 8433218612 | Straight | 885 ft lb | 22 ft lb | 26 lb | 81 r/min | 1 inch | 844 mm | 47 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | - | ||||||||||||||||||||||||||||||
| ETP ST32-05-I06-BCR | 8433221229 | Pistol | 3.7 ft lb | 0.7 ft lb | 2 lb | 2820 r/min | 1/4 inch | 197 mm | <70 dB(A) | ISO15744 | Yes | na | No | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1400 W | 200 V | ST | 5 - Small equipment <50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 205 mm | <2.5 m/s² | ISO28927-2 | |||||||||||||||||||||||||||||
| ETV ST81-50-10-G | 8433205285 | Angle | 51 ft lb | 11 ft lb | 3.9 lb | 654 r/min | 3/8 inch | 473 mm | 18 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST81 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 5 - Small equipment <50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 48 mm | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||
| ETV ST81-150-HAD | 8433206181 | Angle | 117 ft lb | 22 ft lb | 7.0 lb | 365 r/min | 560 mm | 26 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST81 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 80 mm | <2.5 m/s² | ISO28927-2 | 200 HAD | ||||||||||||||||||||||||||||
| ETV ST101-270-HAD | 8433208192 | Angle | 199 ft lb | 48 ft lb | 18.3 lb | 380 r/min | 672 mm | 33 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 103.5 mm | <2.5 m/s² | ISO28927-2 | 200 HAD | ||||||||||||||||||||||||||||
| ETV ST101-450-20 | 8433208281 | Angle | 332 ft lb | 81 ft lb | 23.4 lb | 230 r/min | 3/4 inch | 715 mm | 54.0 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 76 mm | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||
| ETV ST101-180-HAD-F | 8433208090 | Angle | 133 ft lb | 37 ft lb | 10.1 lb | 575 r/min | 600 mm | 26 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 6 - Electrical and Electronic Tools | 2006/42/EC, 2011/65/EU, 2014/30/EU | 80.1 mm | <2.5 m/s² | ISO28927-2 | |||||||||||||||||||||||||||||
| ETV ST101-180-13-F | 8433208063 | Angle | 133 ft lb | 37 ft lb | 9.3 lb | 575 r/min | 1/2 inch | 600 mm | 25 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 47 mm | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||
| ETP ST101-3000-38-F | 8433232302 | Pistol | 2212 ft lb | 664 ft lb | 33 lb | 24 r/min | 1 1/2 inch | 476 mm | 59 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETPST101 | Yes | Yes | 3 a.c. | EN 61010-1, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 61000-6-2:2005, EN 61000-6-3:2007 A1:2011/AC:2012 | 1500 W | 200 V | ST Revo | 5 - Small equipment <50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 8 | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||
| ETC-ST101-265-18HEX-LO4 | 8433232426 | Crowfoot | 196 ft lb | 40 ft lb | 17 lb | 1375 r/min | 807 mm | <70 dB(A) | ISO15744 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | 4 - Large equipment >50cm | 2004/108/EC, 2006/42/EC, 2006/95/EC | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||||||||
| ETD ST101-750-25 | 8433218440 | Straight | 553 ft lb | 109 ft lb | 20.3 lb | 143 r/min | 1 inch | 681 mm | 45 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | - | ||||||||||||||||||||||||||||||
| ETV ST101-270INTEL-T50 | 8433208126 | Angle | 199 ft lb | 48 ft lb | 16.5 lb | 380 r/min | 675 mm | 35.9 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | 4 - Large equipment >50cm | 2004/108/EC, 2006/42/EC, 2006/95/EC | 235 mm | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||||
| ETD ST101-1000-25 | 8433218560 | Straight | 737 ft lb | 184 ft lb | 21.6 lb | 100 r/min | 1 inch | 708 mm | 45 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | - | ||||||||||||||||||||||||||||||
| ETV ST81-120-HAD | 8433205865 | Angle | 100 ft lb | 22 ft lb | 6.0 lb | 540 r/min | 560 mm | 26 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST81 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 80 mm | <2.5 m/s² | ISO28927-2 | 200 HAD | ||||||||||||||||||||||||||||
| ETD ST101-150-20-T40 | 8433218146 | Straight | 109 ft lb | 22 ft lb | 9.7 lb | 685 r/min | 3/4 inch | 656 mm | 30.5 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | - | ||||||||||||||||||||||||||||||
| ETC ST81-70-15-LO5 | 8433231826 | Crowfoot | 51.6 ft lb | 10.5 ft lb | 380 r/min | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST81 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | <2.5 m/s² | ISO28927-2 | Offset | ||||||||||||||||||||||||||||||||
| ETC ST101-200-22-LO3 | 8433231057 | Crowfoot | 147 ft lb | 38 ft lb | 20.5 lb | 380 r/min | 738 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | <2.5 m/s² | ISO28927-2 | 139.8 mm | 22 mm | 37 mm | 38.55 mm | 76.2 mm | 98.7 mm | 132.7 mm | 75.3 mm | 45 mm | 22.5 mm | Offset | 135.5 mm | |||||||||||||||||||
| ETV ST101-240-20-SH-L300 | 8433208197 | Angle | 177 ft lb | 53 ft lb | 24 lb | 280 r/min | 3/4 inch | 1096 mm | 27.5 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 47 mm | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||
| ETP ST101-200-20-F | 8433230202 | Pistol | 145 ft lb | 45 ft lb | 11.5 lb | 396 r/min | 3/4 inch | 303 mm | 32.5 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETPST101 | Yes | Yes | 3 a.c. | EN 61010-1, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 61000-6-2:2005, EN 61000-6-3:2007 A1:2011/AC:2012 | 1500 W | 200 V | ST Revo | 5 - Small equipment <50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 3 | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||
| ETC ST81-90-17LS-LI4 | 8433232337 | Crowfoot | 66 ft lb | 12 ft lb | 8.7 lb | 1168 r/min | 705 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST81 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | <2.5 m/s² | ISO28927-2 | In-Line | ||||||||||||||||||||||||||||||
| ETV ST101-600-TM | 8433208362 | Angle | 443 ft lb | 111 ft lb | 16.8 lb | 132 r/min | 3/4 inch | 613 mm | 34 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 143 mm | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||
| ETD ST101-1000-25-F | 8433218570 | Straight | 737 ft lb | 184 ft lb | 21.6 lb | 100 r/min | 1 inch | 708 mm | 45 mm | <70 dB(A) | ISO15744 | R-REI-50A-ETVST101 | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 2004/108/EC, 2006/42/EC, 2006/95/EC | - | |||||||||||||||||||||||||||||||||
| ETD ST101-300-20 | 8433218270 | Straight | 221 ft lb | 51 ft lb | 16.3 lb | 345 r/min | 3/4 inch | 706 mm | 33 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | - | ||||||||||||||||||||||||||||||
| ETV ST81-100-HAD-HD | 8433205635 | Angle | 80 ft lb | 15 ft lb | 540 r/min | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST81 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | <2.5 m/s² | ISO28927-2 | 200 HAD | ||||||||||||||||||||||||||||||||
| ETD ST101-4000-38T50SF | 8433219742 | Straight | 2950 ft lb | 735 ft lb | 48 lb | 25 r/min | 1 1/2 inch | 921 mm | 68 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 8 | ||||||||||||||||||||||||||||||
| ETV ST101-270-FS | 8433208135 | Angle | 199 ft lb | 48 ft lb | 16.4 lb | 380 r/min | 672 mm | 33 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 77 mm | <2.5 m/s² | ISO28927-2 | 370 FS | ||||||||||||||||||||||||||||
| ETD ST101-750-25-F | 8433218450 | Straight | 553 ft lb | 109 ft lb | 20.3 lb | 143 r/min | 1 inch | 681 mm | 45 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | - | ||||||||||||||||||||||||||||||
| ETC ST101-200-21-LO3 | 8433231051 | Crowfoot | 158 ft lb | 38 ft lb | 20.5 lb | 380 r/min | 731 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | <2.5 m/s² | ISO28927-2 | 148.8 mm | 21 mm | 40 mm | 32.75 mm | 70.4 mm | 91.4 mm | 125.4 mm | 75.3 mm | 42 mm | 21 mm | Offset | 128.2 mm | |||||||||||||||||||
| ETV ST101-270-20-F | 8433208145 | Angle | 199 ft lb | 48 ft lb | 16.1 lb | 380 r/min | 3/4 inch | 672 mm | 33 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 62 mm | <2.5 m/s² | ISO28927-2 | ||||||||||||||||||||||||||||
| ETP ST32-10-10 | 8433221348 | Pistol | 8.0 ft lb | 2.2 ft lb | 1.8 lb | 1210 r/min | 3/8 inch | 197 mm | <70 dB(A) | ISO15744 | Yes | na | No | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1400 W | 200 V | ST | 5 - Small equipment <50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 179 mm | <2.5 m/s² | ISO28927-2 | |||||||||||||||||||||||||||||
| ETV ST81-100-HAD-TX | 8433205637 | Angle | 80 ft lb | 15 ft lb | 5.9 lb | 540 r/min | 522 mm | 22.5 mm | <70 dB(A) | ISO15744 | R-REI-50A-ETVST81 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | 6 - Electrical and Electronic Tools | 2006/42/EC, 2011/65/EU, 2014/30/EU | 60 mm | <2.5 m/s² | ISO28927-2 | |||||||||||||||||||||||||||||||
| ETV ST101-600-FS | 8433208364 | Angle | 443 ft lb | 111 ft lb | 22.0 lb | 150 r/min | 715 mm | 54 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 69 mm | <2.5 m/s² | ISO28927-2 | 600 FS | ||||||||||||||||||||||||||||
| ETD ST101-300-20-T40-F | 8433218291 | Straight | 221 ft lb | 51 ft lb | 16.5 lb | 345 r/min | 3/4 inch | 756 mm | 33 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | - | ||||||||||||||||||||||||||||||
| ETD ST101-2000-38-T50F | 8433218720 | Straight | 1475 ft lb | 370 ft lb | 37 lb | 48 r/min | 1 1/2 inch | 840 mm | 68 mm | <70 dB(A) | ISO15744 | Yes | R-REI-50A-ETVST101 | Yes | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | - | ||||||||||||||||||||||||||||||
| ETV ST101-100-FSHAD-T12 | 8433208081 | Angle | 74 ft lb | 15 ft lb | 9.3 lb | 565 r/min | 570 mm | 23 mm | <70 dB(A) | ISO15744 | Yes | na | No | Yes | 3 a.c. | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 | 1500 W | 200 V | ST | 4 - Large equipment >50cm | 2006/42/EC, 2011/65/EU, 2014/30/EU | 77 mm | <2.5 m/s² | ISO28927-2 | |||||||||||||||||||||||||||||
| ETC STB63-40-3/8-LO3-W | 8433232486 | Crowfoot | 29 ft lb | 9 ft lb | 8.2 lb | 559 mm | <70 dB(A) | ISO15744 | No | Yes | EN 300 328 V2.1.1, EN 300 440 V2.1.1, EN 301 489-1 V2.1.1, EN 301 489-17 V3.1.1, EN 55014-1:2017, EN 55014-2:2015, EN 61000-6-2:2005+AC:2005, EN 61000-6-4:2007+A1:2011, EN 62841-1:2015, EN 62841-2-2:2014 + AC:2015 | 1500 W | 30 V | 4 - Large equipment >50cm | 2014/53/EU, 2014/30/EU, 2006/42/EC, 2011/65/EU | <2.5 m/s² | ISO28927-2 | Li-Io 30 V | 2014AJ1502 | W-LAN | 3008099 | Yes | 1 - 60745-1, -2-2 | PVH0946 | 365 r/min | 5325A-0946 |

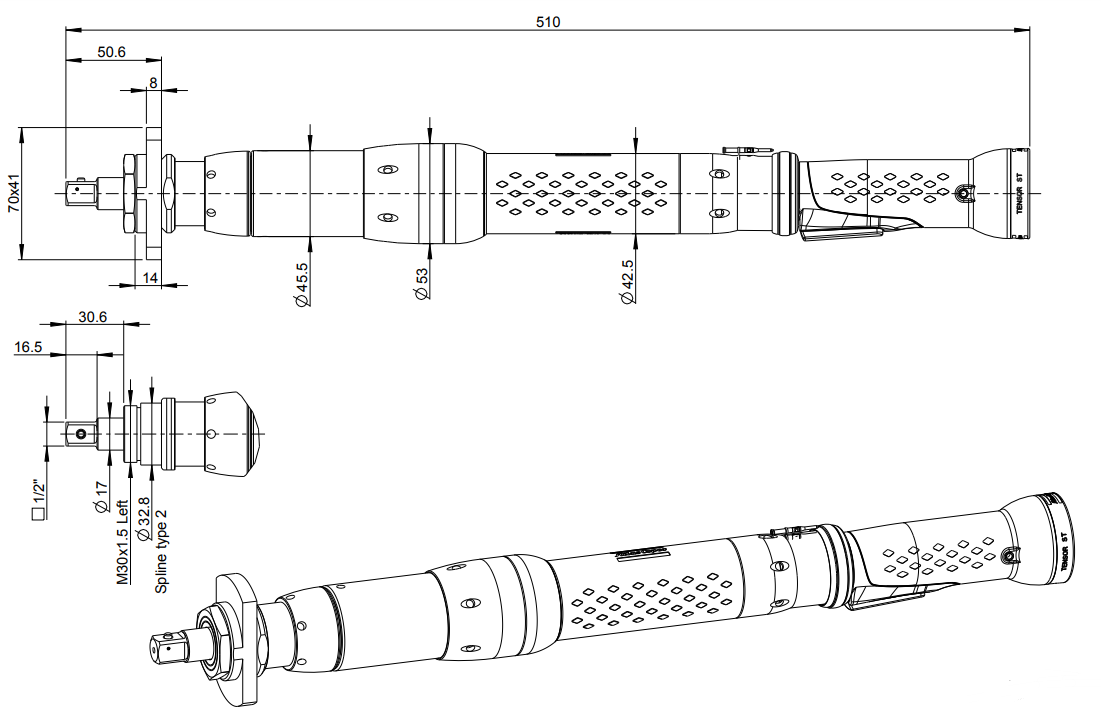

Atlas电动扳手ETD ST81-120-13结构图
