高级钻孔装置

所属品牌：阿特拉斯·科普柯Atlas Copco

产品型号：PFD1100

Atlas阿特拉斯PFD1100钻孔装置，可以用于一次性钻孔和沉孔的广泛应用的轻型高速钻孔到重型钻孔。高功率涡轮电机使得该工具可以用于部件制造和组装周边的大多数应用，提高生产率并确保获得孔质量必需的恒定主轴速度。PFD 1100 可以配置为直列形状（垂直钻孔）或直角形状，并且具有较宽的速度和进给范围，可以适应需要。内置润滑系统（集成润滑泵）可确保切割工具点处冷却液的量适当，从而实现快速钻孔。

点我询价

线上咨询

商品描述
商品询价热度

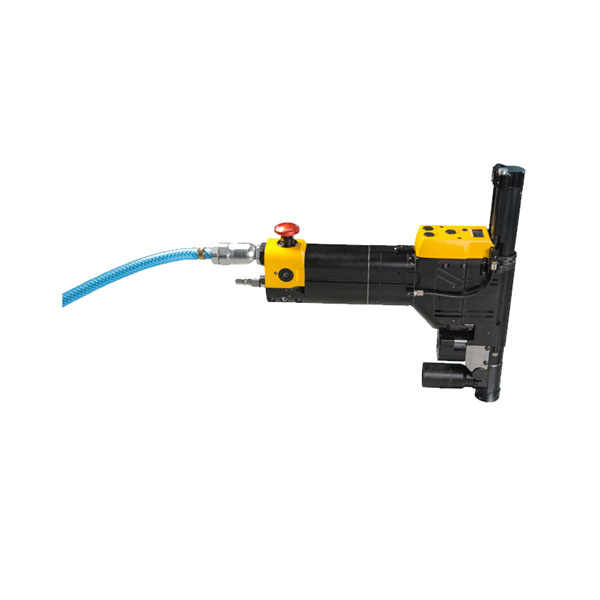

Atlas阿特拉斯PFD1100钻孔装置

Atlas <b style=

阿特拉斯PFD1100钻孔装置优势特点

易于维修

快速重新配置

总拥有成本低

出色的耐用性

主轴功率

高生产率和可维护性

降低操作员出错的风险

紧急停止 - 符合机械指令

ChipLet® - 芯片阻断系统

内置润滑系统 - 无需附加装置

广泛的应用 - 高速钻孔和重型钻孔

阿特拉斯钻孔装置PFD1100各个型号技术参数

型号	ID	空载速度	进给速率	Chiplet	分度器	集成泵	型号类型	空转速度下的空气消耗量	空气消耗量输出	进气口螺纹	计数器	中心到侧边距离	经过 EAC 认证	EC 标准	EU 指令	长度	输出	扭矩	工作压力	软管尺寸	工作压力	电机类型	快速进给	推荐的软管尺寸	声压	声音标准	声音不确定度	推力	重量	宽度
PFD1100RA-EHC010N	8440111009	930 r/min	0.093 mm/rev	Yes	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-GED011B	8440110100	1600 r/min	0.054 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	78 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-IDC010B	8440111050	2600 r/min	0.038 mm/rev	Yes	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-HFC010N	8440111012	2200 r/min	0.071 mm/rev	Yes	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-ACC010B	8440110116	350 r/min	0.028 mm/rev	Yes	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-CEC010B	8440110117	520 r/min	0.054 mm/rev	Yes	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	76 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-CEA001N	8440110128	520 r/min	0.054 mm/rev	No	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	76 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-KDF011B	8440111030	4200 r/min	0.038 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-KFC110N	8440111041	4200 r/min	0.071 mm/rev	Yes	No	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-DEA001B	8440111033	700 r/min	0.054 mm/rev	No	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-IFA110B	8440111034	2600 r/min	0.071 mm/rev	No	No	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-AEC011B	8440111049	350 r/min	0.054 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	75 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-HEC100B	8440111090	2200 r/min	0.054 mm/rev	Yes	No	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-HEB110B	8440111201	2200 r/min	0.054 mm/rev	Yes	No	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm		EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	76 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-BKG001N	8440111134	430 r/min	0.015 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	76 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-CCB111B	8440111089	520 r/min	0.028 mm/rev	Yes	Yes	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	76 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100IL-GEB111B	8440112007	1600 r/min	0.054 mm/rev	Yes	Yes	Yes	Straight	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	78 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-GJA011B	8440111209	1600 r/min	0.13 mm/rev	No	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm		EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	78 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-HDC011B	8440111052	2200 r/min	0.038 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-ACF011N	8440111108	350 r/min	0.028 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	75 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-KEC011B	8440111006	4200 r/min	0.054 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100IL-DEB000N	8440112003	700 r/min	0.054 mm/rev	Yes	No	No	Straight	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-FFC101B	8440111119	1200 r/min	0.071 mm/rev	Yes	Yes	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	78 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-GFD100B	8440111190	1600 r/min	0.071 mm/rev	Yes	No	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	78 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-IEC101B	8440111127	2600 r/min	0.054 mm/rev	Yes	Yes	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-EEA000B	8440111162	930 r/min	0.054 mm/rev	No	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-BCH111B	8440111068	430 r/min	0.028 mm/rev	Yes	Yes	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	76 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-AEG010B	8440111054	350 r/min	0.054 mm/rev	Yes	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	75 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-MEA110B	8440111110	7300 r/min	0.054 mm/rev	No	No	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	80 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-EHG011N	8440111157	930 r/min	0.093 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-FFD011N	8440111223	1200 r/min	0.071 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	78 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-LFC010N	8440111212	5500 r/min	0.071 mm/rev	Yes	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-CFH111B	8440111145	520 r/min	0.071 mm/rev	Yes	Yes	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	76 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-ACJ011N	8440111197	350 r/min	0.028 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	75 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-GEC100N	8440111075	1600 r/min	0.054 mm/rev	Yes	No	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	78 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-GEA011B	8440111111	1600 r/min	0.054 mm/rev	No	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	78 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-EFB111B	8440111129	930 r/min	0.071 mm/rev	Yes	Yes	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-EEC110N	8440111132	930 r/min	0.054 mm/rev	Yes	No	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-DDG011B	8440111159	700 r/min	0.038 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-IFC111B	8440111085	2600 r/min	0.071 mm/rev	Yes	Yes	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-HEC001N	8440111092	2200 r/min	0.054 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-DFG111B	8440111144	700 r/min	0.071 mm/rev	Yes	Yes	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-CBC010N	8440111189	520 r/min	0.017 mm/rev	Yes	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	76 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-FEC011N	8440111126	1200 r/min	0.054 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	78 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-GFD001B	8440111216	1600 r/min	0.071 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	78 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-BFH101B	8440111168	430 r/min	0.071 mm/rev	Yes	Yes	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	76 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-BEF111N	8440111093	430 r/min	0.054 mm/rev	Yes	Yes	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	76 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-FCC011B	8440111077	1200 r/min	0.028 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	78 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-DEF110B	8440111067	700 r/min	0.054 mm/rev	Yes	No	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-EFH111B	8440111083	930 r/min	0.071 mm/rev	Yes	Yes	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-AEA000N	8440111179	350 r/min	0.028 mm/rev	Yes	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	75 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-IFH111B	8440111082	2600 r/min	0.071 mm/rev	Yes	Yes	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-JHC010B	8440111101	3200 r/min	0.093 mm/rev	Yes	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	78 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-CEF011N	8440111178	700 r/min	0.038 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-LFB010N	8440111057	5500 r/min	0.071 mm/rev	Yes	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100IL-FCC011B	8440112004	1200 r/min	0.028 mm/rev	Yes	Yes	No	Straight	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	78 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-AEC000B	8440111056	350 r/min	0.054 mm/rev	Yes	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	75 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-CEA111N	8440111194	520 r/min	0.054 mm/rev	No	Yes	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	76 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-ECC111B	8440111070	930 r/min	0.028 mm/rev	Yes	Yes	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-AFF011B	8440111185	350 r/min	0.071 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	75 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-EFC010B	8440111167	930 r/min	0.071 mm/rev	Yes	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-HEC000N	8440111099	2200 r/min	0.054 mm/rev	Yes	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-BEC000N	8440111136	430 r/min	0.054 mm/rev	Yes	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	76 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-CFB111B	8440111131	520 r/min	0.071 mm/rev	Yes	Yes	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	76 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-BFH111B	8440111081	430 r/min	0.071 mm/rev	Yes	Yes	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	76 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-GFC111B	8440111191	1600 r/min	0.071 mm/rev	Yes	Yes	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	78 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-CDC011N	8440111213	520 r/min	0.038 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	76 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-AEF110N	8440111087	350 r/min	0.054 mm/rev	Yes	No	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	75 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-GEC000N	8440111100	1600 r/min	0.054 mm/rev	Yes	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	78 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-ACA111B	8440111153	350 r/min	0.028 mm/rev	No	Yes	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	75 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-GEB111B	8440111130	1600 r/min	0.054 mm/rev	Yes	Yes	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	78 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-CEG000N	8440111228	520 r/min	0.054 mm/rev	Yes	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	76 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-CCF111N	8440111073	520 r/min	0.028 mm/rev	Yes	Yes	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	76 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-HED111B	8440111147	2200 r/min	0.054 mm/rev	Yes	Yes	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-JHB110B	8440111062	3200 r/min	0.093 mm/rev	Yes	No	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	78 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-IFA010B	8440111202	2600 r/min	0.071 mm/rev	No	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm		EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-ICC111B	8440111069	2600 r/min	0.028 mm/rev	Yes	Yes	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-AEG011N	8440111150	350 r/min	0.054 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	75 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-ADF001N	8440111186	350 r/min	0.038 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	75 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-FCC101B	8440111152	1200 r/min	0.028 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	78 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-DEH011B	8440111143	700 r/min	0.054 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-IEB111B	8440111128	2600 r/min	0.054 mm/rev	Yes	Yes	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-CEC000N	8440111135	520 r/min	0.054 mm/rev	Yes	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	76 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100IL-CFC111B	8440112010	520 r/min	0.071 mm/rev	Yes	Yes	Yes	Straight	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	76 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100IL-GEA100B	8440112016	1600 r/min	0.054 mm/rev	No	No	Yes	Straight	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	80 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-AEG001N	8440111137	350 r/min	0.054 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	75 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-BFH100B	8440111169	430 r/min	0.071 mm/rev	Yes	No	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	76 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-BDC011N	8440111214	430 r/min	0.038 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	76 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100IL-LDD010N	8440112014	5500 r/min	0.038 mm/rev	Yes	No	No	Straight	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-EEF110B	8440111199	930 r/min	0.054 mm/rev	Yes	No	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm		EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	76 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100IL-HEC010B	8440112002	2200 r/min	0.054 mm/rev	Yes	No	No	Straight	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-FEB111B	8440111122	1200 r/min	0.054 mm/rev	Yes	Yes	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	78 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-AFB011B	8440111184	350 r/min	0.071 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	75 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-EEB011N	8440111055	930 r/min	0.054 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-FEE111B	8440111148	1200 r/min	0.054 mm/rev	Yes	Yes	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	78 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100IL-IED010B	8440112001	2600 r/min	0.054 mm/rev	Yes	No	No	Straight	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-BEF011N	8440111105	430 r/min	0.054 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	76 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-KED010N	8440111211	4200 r/min	0.054 mm/rev	Yes	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-BEC110B	8440111173	430 r/min	0.054 mm/rev	Yes	No	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	76 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-DEF010B	8440111177	700 r/min	0.054 mm/rev	Yes	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-JEB110B	8440111200	3200 r/min	0.054 mm/rev	Yes	No	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm		EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	76 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-IEA011B	8440111113	2600 r/min	0.054 mm/rev	No	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-CDD011N	8440111224	520 r/min	0.038 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	76 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-AEF010N	8440111104	350 r/min	0.054 mm/rev	Yes	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	75 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-CDG010N	8440111218	520 r/min	0.038 mm/rev	Yes	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	76 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-CBA000N	8440111219	520 r/min	0.017 mm/rev	No	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	76 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-JEA110N	8440111072	3200 r/min	0.054 mm/rev	No	No	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	78 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-BCG111B	8440111103	430 r/min	0.028 mm/rev	Yes	Yes	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	76 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-CDF011N	8440111222	520 r/min	0.038 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	76 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-BEA001B	8440111061	430 r/min	0.054 mm/rev	No	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	76 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-DHA001N	8440111170	700 r/min	0.093 mm/rev	No	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100IL-CFB111B	8440112008	520 r/min	0.071 mm/rev	Yes	Yes	Yes	Straight	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	76 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-CEA000N	8440111180	350 r/min	0.028 mm/rev	Yes	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	75 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-ADC111N	8440111158	350 r/min	0.038 mm/rev	Yes	Yes	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	75 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-LED110B	8440111142	5500 r/min	0.054 mm/rev	Yes	No	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-CEF110B	8440111204	520 r/min	0.054 mm/rev	Yes	No	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm		EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	76 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100IL-AEB001B	8440112020	350 r/min	0.054 mm/rev	Yes	Yes	No	Straight	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	75 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-ACH000N	8440111149	350 r/min	0.028 mm/rev	Yes	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	75 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100IL-IEB111B	8440112011	2600 r/min	0.054 mm/rev	Yes	Yes	Yes	Straight	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100IL-KEB000B	8440112018	4200 r/min	0.054 mm/rev	Yes	No	No	Straight	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100IL-IEC000B	8440112019	2600 r/min	0.054 mm/rev	Yes	No	No	Straight	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-DFG011N	8440111156	700 r/min	0.071 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-DDC111N	8440111102	700 r/min	0.038 mm/rev	Yes	Yes	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-CDG001N	8440111133	520 r/min	0.038 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	76 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-CEF111N	8440111121	520 r/min	0.054 mm/rev	Yes	Yes	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	76 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-HFA011B	8440111208	2200 r/min	0.071 mm/rev	No	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm		EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100IL-GEB001B	8440112013	1600 r/min	0.054 mm/rev	Yes	Yes	No	Straight	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	78 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-DEF011N	8440111109	700 r/min	0.054 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-ICG011B	8440111151	2600 r/min	0.028 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-KHB110B	8440111065	4200 r/min	0.093 mm/rev	Yes	No	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-EFC111B	8440111086	930 r/min	0.071 mm/rev	Yes	Yes	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-AKA110B	8440111140	350 r/min	0.15 mm/rev	No	No	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	75 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-JEB111B	8440111175	3200 r/min	0.054 mm/rev	Yes	Yes	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	78 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-ABG111N	8440111094	350 r/min	0.017 mm/rev	Yes	Yes	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	75 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-DDH010B	8440111125	700 r/min	0.038 mm/rev	Yes	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-IDC011B	8440111051	2600 r/min	0.038 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-LFD010N	8440111225	5500 r/min	0.071 mm/rev	Yes	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-IEH100B	8440111196	2600 r/min	0.054 mm/rev	Yes	No	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	78 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-DEF000N	8440111227	700 r/min	0.054 mm/rev	Yes	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-IFB010B	8440111060	2600 r/min	0.071 mm/rev	Yes	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-BEC111N	8440111155	430 r/min	0.054 mm/rev	Yes	Yes	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	76 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-KCA010N	8440111210	4200 r/min	0.028 mm/rev	No	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm		EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	80 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-JFC010B	8440111160	3200 r/min	0.071 mm/rev	Yes	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	78 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-IED111B	8440111112	2600 r/min	0.054 mm/rev	Yes	Yes	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-DDF010N	8440111217	700 r/min	0.038 mm/rev	Yes	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-ACF111N	8440111096	350 r/min	0.028 mm/rev	Yes	Yes	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	75 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-ACF110B	8440111079	350 r/min	0.028 mm/rev	Yes	No	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	75 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-BEF100N	8440111221	430 r/min	0.054 mm/rev	Yes	No	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	76 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-GEH111B	8440111141	1600 r/min	0.054 mm/rev	Yes	Yes	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	78 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-HFB010N	8440111088	2200 r/min	0.071 mm/rev	Yes	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-JFC110B	8440111118	3200 r/min	0.017 mm/rev	Yes	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	78 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-AKA111B	8440111114	350 r/min	0.15 mm/rev	No	Yes	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	75 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-JDG110B	8440111171	3200 r/min	0.038 mm/rev	Yes	No	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	78 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-ACG111N	8440111095	350 r/min	0.028 mm/rev	Yes	Yes	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	75 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100IL-FDA010B	8440112005	1200 r/min	0.038 mm/rev	No	No	No	Straight	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	78 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-BBA001N	8440111174	430 r/min	0.017 mm/rev	No	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	76 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-FEA001N	8440111071	930 r/min	0.054 mm/rev	No	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100IL-MBD010N	8440112015	7300 r/min	0.017 mm/rev	Yes	No	No	Straight	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	80 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-BDD011N	8440111120	430 r/min	0.037 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	76 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-AFH100B	8440111154	350 r/min	0.071 mm/rev	Yes	No	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	75 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-ACJ001N	8440111198	350 r/min	0.028 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-FHH000B	8440111058	1200 r/min	0.093 mm/rev	Yes	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	78 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-EEC110B	8440111098	930 r/min	0.054 mm/rev	Yes	No	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100IL-FFC011B	8440112006	1200 r/min	0.071 mm/rev	Yes	Yes	No	Straight	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	78 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-EEF010N	8440111161	930 r/min	0.054 mm/rev	Yes	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-CFF111N	8440111117	520 r/min	0.071 mm/rev	Yes	Yes	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	76 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-CEF001N	8440111187	520 r/min	0.054 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	76 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-ABG011N	8440111106	350 r/min	0.017 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	75 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-IEH010B	8440111124	2600 r/min	0.054 mm/rev	Yes	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-BEF010B	8440111183	430 r/min	0.054 mm/rev	Yes	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	75 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-FFC011B	8440111084	1200 r/min	0.071 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	78 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-FEC001N	8440111139	1200 r/min	0.054 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	78 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-CEG110B	8440111063	520 r/min	0.054 mm/rev	Yes	No	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	76 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-DFH100B	8440111176	700 r/min	0.071 mm/rev	Yes	No	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100IL-EFB111B	8440112012	930 r/min	0.071 mm/rev	Yes	Yes	Yes	Straight	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-AEG110B	8440111064	350 r/min	0.054 mm/rev	Yes	No	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	75 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-JDC010B	8440111166	3200 r/min	0.038 mm/rev	Yes	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	78 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-AEG110N	8440111091	350 r/min	0.054 mm/rev	Yes	No	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	75 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-AEG000N	8440111138	350 r/min	0.054 mm/rev	Yes	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	75 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-BEG111B	8440111115	430 r/min	0.054 mm/rev	Yes	Yes	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	76 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-ECG110B	8440111172	930 r/min	0.028 mm/rev	Yes	No	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-JDG010B	8440111163	3200 r/min	0.038 mm/rev	Yes	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	78 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-ECC011B	8440111078	930 r/min	0.028 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100IL-GEC111B	8440112009	1600 r/min	0.054 mm/rev	Yes	Yes	Yes	Straight	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	78 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-GDC011B	8440111053	1600 r/min	0.038 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	78 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-JDA010N	8440111220	3200 r/min	0.038 mm/rev	No	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm		EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	78 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-IFC001N	8440111188	2600 r/min	0.071 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-ECG010B	8440111164	930 r/min	0.028 mm/rev	Yes	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-ACG011N	8440111107	350 r/min	0.028 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	75 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-EEG011B	8440111182	930 r/min	0.054 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	75 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100IL-KEC000B	8440112017	4200 r/min	0.054 mm/rev	Yes	No	No	Straight	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-DEF111N	8440111097	700 r/min	0.054 mm/rev	Yes	Yes	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-IFB110B	8440111066	2600 r/min	0.071 mm/rev	Yes	Yes	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-CFC011B	8440111059	520 r/min	0.071 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	76 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-AFD011N	8440111015	930 r/min	0.071 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-IFC010N	8440111011	2600 r/min	0.071 mm/rev	Yes	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-FEB011B	8440111181	1200 r/min	0.054 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	75 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-IFD110B	8440111080	2600 r/min	0.071 mm/rev	Yes	No	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-HFC011B	8440111207	2200 r/min	0.071 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm		EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	75 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-JEF111N	8440111116	4200 r/min	0.093 mm/rev	Yes	Yes	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-CEF001B	8440111192	520 r/min	0.054 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	76 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-HEC100N	8440111074	2200 r/min	0.054 mm/rev	Yes	No	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-IFD111B	8440111146	2600 r/min	0.073 mm/rev	Yes	Yes	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-AEG100B	8440111215	350 r/min	0.054 mm/rev	Yes	No	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-BEF110B	8440111203	430 r/min	0.054 mm/rev	Yes	No	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm		EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	76 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-GCC011B	8440111076	1600 r/min	0.028 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	78 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-ABD001N	8440111031	350 r/min	0.017 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	75 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-AJA001N	8440110111	350 r/min	0.13 mm/rev	No	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-IFC110N	8440111037	2600 r/min	0.071 mm/rev	Yes	No	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-LFA001N	8440111019	5500 r/min	0.071 mm/rev	No	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-HEC010N	8440110113	2200 r/min	0.054 mm/rev	Yes	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-JBB011B	8440111048	3200 r/min	0.017 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	78 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-EEC010B	8440111047	930 r/min	0.054 mm/rev	Yes	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-KHC111N	8440111035	4200 r/min	0.093 mm/rev	Yes	Yes	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-AFA000N	8440110110	350 r/min	0.071 mm/rev	No	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-LFC110N	8440111043	5500 r/min	0.071 mm/rev	Yes	No	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-GED010B	8440110105	1600 r/min	0.054 mm/rev	Yes	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	78 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-ABA001B	8440111032	350 r/min	0.017 mm/rev	No	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	75 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-JBD011B	8440110114	3200 r/min	0.017 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-BED011N	8440110104	430 r/min	0.054 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-IHD110N	8440111036	2600 r/min	0.093 mm/rev	Yes	No	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-AKD011N	8440111016	930 r/min	0.15 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-FFD011N	8440111024	1200 r/min	0.071 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	78 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-FED011B	8440111005	1200 r/min	0.054 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	78 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-JEC010B	8440111007	3200 r/min	0.054 mm/rev	Yes	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	78 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-CEC011B	8440111004	520 r/min	0.054 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	76 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-ICC011B	8440111046	2600 r/min	0.028 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-MEA010N	8440110125	7300 r/min	0.054 mm/rev	No	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	80 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-EED011N	8440110108	930 r/min	0.054 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-AED011N	8440111045	350 r/min	0.054 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	75 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-CEA010N	8440110123	520 r/min	0.054 mm/rev	Yes	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	76 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-AEC010N	8440111002	350 r/min	0.054 mm/rev	Yes	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-LJC110N	8440111042	5500 r/min	0.13 mm/rev	Yes	No	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-IED011N	8440110102	2600 r/min	0.054 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-AFD111N	8440111044	350 r/min	0.071 mm/rev	Yes	Yes	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	75 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-JEA010N	8440110124	3200 r/min	0.054 mm/rev	No	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-BBA000B	8440111008	430 r/min	0.017 mm/rev	No	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	76 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-HEH011N	8440111026	2200 r/min	0.054 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-ABC011B	8440111023	350 r/min	0.017 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	75 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-JHD110N	8440111038	3200 r/min	0.093 mm/rev	Yes	No	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	78 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-HHD011N	8440110118	2200 r/min	0.093 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-DEC011N	8440111029	700 r/min	0.054 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-GFC010N	8440111013	1600 r/min	0.071 mm/rev	Yes	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	78 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-JCD010N	8440110126	3200 r/min	0.028 mm/rev	Yes	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	78 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-DED011N	8440110103	700 r/min	0.054 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-IEC010B	8440110119	2600 r/min	0.054 mm/rev	Yes	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-HEC010B	8440110120	2200 r/min	0.054 mm/rev	Yes	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-ICD011B	8440110115	2600 r/min	0.028 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-HEC011B	8440111028	2200 r/min	0.054 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-BEC011B	8440111003	430 r/min	0.054 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	76 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-HHD011N	8440111018	4200 r/min	0.071 mm/rev	No	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-EEC011N	8440111020	930 r/min	0.054 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-CED010N	8440110127	520 r/min	0.054 mm/rev	Yes	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	76 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-CEC010N	8440111001	520 r/min	0.054 mm/rev	Yes	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	76 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-IFD010B	8440110107	2600 r/min	0.071 mm/rev	Yes	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-CFA001N	8440110112	520 r/min	0.071 mm/rev	No	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	76 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-EFD010B	8440110106	930 r/min	0.071 mm/rev	Yes	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-CEG011N	8440111027	520 r/min	0.054 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	76 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-JHC011N	8440111025	3200 r/min	0.093 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	78 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-KHC110N	8440111040	4200 r/min	0.093 mm/rev	Yes	No	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-JFC010N	8440111010	3200 r/min	0.071 mm/rev	Yes	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	78 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-JFC110N	8440111039	3200 r/min	0.071 mm/rev	Yes	No	Yes	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	78 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-AFA001N	8440110109	350 r/min	0.071 mm/rev	No	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-DEA001N	8440111014	700 r/min	0.054 mm/rev	No	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	No	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-HED011N	8440110101	2200 r/min	0.054 mm/rev	Yes	Yes	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
PFD1100RA-DEB010N	8440111021	700 r/min	0.054 mm/rev	Yes	No	No	Angle	8.7 l/s	30 l/s	1/2 inch	Yes	16 mm	Yes	EN 121 00, S5056, S5090	2006/42/EC	301 mm	1.7 kW	25 Nm	108.8 psig	13 mm	79.8 psig	Turbine	No	16 mm	77 dB(A)	ISO15744	3 dB(A)	2000 N	6.6 lb	130 mm
