LTC/LTO角度扳手

所属品牌：阿特拉斯·科普柯Atlas Copco

产品型号：LTC/LTO系列

Atlas 阿特拉斯LTC/LTO 角度扳手属于气动扳手，该气动工具是动力、速度和精度的结合。在狭小难以到达的空间内，AtlasLTC/LTO 角度扳手是理想的解决方案，“C”代表Crowfoot，对于难以到达的接头。“O”代表开口扳子头，适合于管螺母应用的解决方案。同时阿特拉斯工具采用先进的人体工程学设计，对于用户及其的友好，有助于提高装配效率。

点我询价

线上咨询

商品描述
商品询价热度

Atlas 阿特拉斯LTC/LTO气动角度扳手

Atlas LTC/LTO角度扳手优势特点

弯头高度低

高速旋入模式

扭矩重复性

由于的马达设计，降低了空气消耗量

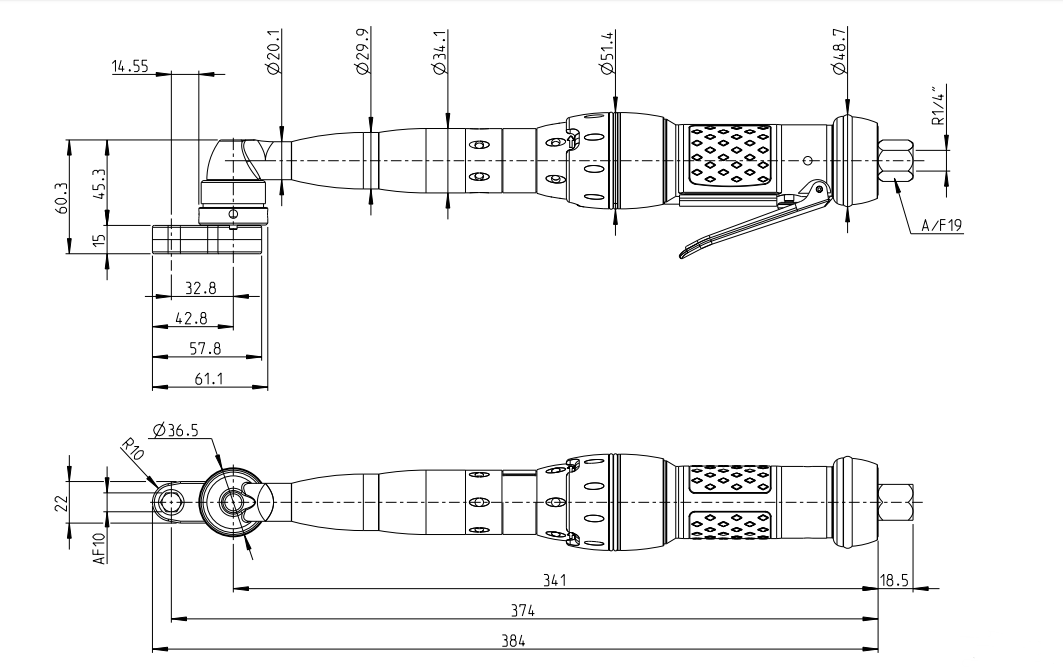

Atlas LTC/LTO角度扳手各型号技术参数

Title	ID	扭矩范围值>	扭矩范值<	空载速度	重量	长度	A/F	A	B	C	D	E	G	H	R	声压	声音标准	震动标准	震动值	扣爪类型	经过 EAC 认证	工作压力<	型号类型	可反转	断气式	声功率	声音不确定度	空转速度下的空气消耗量	进气口螺纹	螺栓尺寸	EC 标准	EU 指令	F	推荐的软管尺寸	振动不确定度	J	管螺母类型	6.3 bar 软接头下的扭矩<	6.3 bar 软接头下的扭矩>
LTC29-2R19-10-LO3	8431061502	7.3 ft lb	14 ft lb	640 r/min	4.4 lb	384 mm	10 mm	60.3 mm	15 mm	14.55 mm	32.8 mm	42.8 mm	36.5 mm	22 mm	10 mm	80 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²	Offset	Yes	100 psig	Angle	Yes	Yes	90 dB(A)	3 dB(A)	10 l/s	1/4 inch	M6 mm	ISO 11148-6	2006/42/EC	61.1 mm	8 mm	3 m/s²
LTO38 R28-12-LI3	8431061708	7 ft lb	20 ft lb	320 r/min	6.4 lb	514 mm	12 mm	43 mm	11 mm	17.5 mm	43.7 mm	29.3 mm	40 mm	50 mm	15 mm	82 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²		Yes	100 psi	Angle	Yes	Yes	93 dB(A)	3 dB(A)				ISO 11148-6	2006/42/EC				10.4 mm	In-Line
LTO28 SR005	8431053010	6 ft lb	14 ft lb	470 r/min	2.4 lb	280 mm										76 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²		Yes	100 psig	Straight	Yes	Yes	87 dB(A)	3 dB(A)				ISO 11148-6	2006/42/EC
LTC48 R120-19-AO3	8431061115	36 ft lb	89 ft lb	180 r/min	9.6 lb	656 mm	19 mm	87 mm	25 mm	42.3 mm	67.6 mm	87.4 mm	54 mm	39.5 mm	19.75 mm	84 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²	Offset	Yes	100 psig	Angle	Yes	Yes	95 dB(A)	3 dB(A)	28 l/s	1/2 inch	M12 mm	ISO 11148-6	2006/42/EC	112.7 mm	12.5 mm	3 m/s²
LTC38 R40-17-AO3	8431061108	17 ft lb	29 ft lb	360 r/min	6.7 lb	519 mm	17 mm	66 mm	19 mm	45.1 mm	67.6 mm	87.2 mm	45 mm	39.2 mm	19.5 mm	82 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²	Offset	Yes	100 psig	Angle	Yes	Yes	93 dB(A)	3 dB(A)	16 l/s	1/4 inch	M8 mm	ISO 11148-6	2006/42/EC	109.7 mm	10 mm	3 m/s²
LTC39-2R28-13-LO5	8431062053	13 ft lb	24.3 ft lb	550 r/min	10.4 lb	488 mm	13 mm									81 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²	Offset	Yes	100 psig	Crowfoot	Yes	Yes	92 dB(A)	3 dB(A)	16 l/s	1/4 inch	M8 mm	ISO 11148-6	2006/42/EC		10 mm	3 m/s²
LTC009 R13-10E5M-LI3	8431062088	3.7 ft lb	9.6 ft lb	125 r/min	4 lb	316 mm										75 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²	In-Line	Yes	100 psig	Crowfoot	Yes	Yes		3 dB(A)				ISO11148-6	2006/42/EC
LTC38 R44-12-LO5	8431061493	18 ft lb	32 ft lb	210 r/min	8.4 lb	593 mm	12 mm									82 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²	Offset	Yes	100 psig	Crowfoot	Yes	Yes	93 dB(A)	3 dB(A)	16 l/s	1/4 inch	M8 mm	ISO 11148-6	2006/42/EC		10 mm	3 m/s²
LTC29-2R21-13-LO5	8431061504	8 ft lb	15 ft lb	500 r/min	4.4 lb	457 mm	13 mm	58.5 mm	10 mm	71.6 mm	93.6 mm	108.1 mm	44 mm	31 mm	14.5 mm	80 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²	Offset	Yes	100 psig	Angle	Yes	Yes	90 dB(A)	3 dB(A)	10 l/s	1/4 inch	M6 mm	ISO 11148-6	2006/42/EC	130.1 mm	8 mm	3 m/s²
LTC39-2R30-13-LO9	8431062051	13 ft lb	22 ft lb	440 r/min	8.4 lb	625 mm	13 mm									81 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²	Offset	Yes	100 psig	Crowfoot	Yes	Yes	92 dB(A)	3 dB(A)	16 l/s	1/4 inch	M8 mm	ISO 11148-6	2006/42/EC		10 mm	3 m/s²
LTC009 R12-10-LI3	8431061364	3.6 ft lb	9 ft lb	120 r/min	2.9 lb	312 mm	10 mm	34 mm	15 mm	12.5 mm	36.7 mm	59 mm	35 mm	22 mm	10 mm	75 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²	In-Line	Yes	100 psi	Angle	Yes	Yes		3 dB(A)				ISO 11148-6	2006/42/EC
LTO28 R12-10-LI3	8431061244	4 ft lb	8 ft lb	420 r/min	4.4 lb	396 mm	10 mm	32 mm	10 mm	13 mm	27.3 mm	25.4 mm	33.5 mm	31 mm	9.8 mm	76 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²		Yes	100 psi	Angle	Yes	Yes		3 dB(A)				ISO 11148-6	2006/42/EC				7 mm	In-Line
LTC009 R13-10-LI3	8431061601	4 ft lb	9 ft lb	127 r/min	4 lb	312 mm	10 mm	34 mm	15 mm	12.5 mm	46.7 mm	59.2 mm	35 mm	22 mm	10 mm	76 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²	In-Line	Yes	100 psi	Angle	Yes	Yes		3 dB(A)				ISO 11148-6	2006/42/EC
LTC39-2R60-16-LO3	8431061514	25 ft lb	44 ft lb	305 r/min	6.7 lb	541 mm	16 mm	91 mm	24 mm	27 mm	51 mm	66 mm	48 mm	30 mm	15 mm	81 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²	Offset	Yes	100 psig	Angle	Yes	Yes	92 dB(A)	3 dB(A)	16 l/s	1/4 inch	M10 mm	ISO 11148-6	2006/42/EC	91.5 mm	10 mm	3 m/s²
LTC39-2R44-13E10-LO3	8431061988	17 ft lb	32 ft lb	430 r/min	6 lb	470 mm	13 mm									81 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²	Offset	Yes	100 psig	Angle	Yes	Yes	92 dB(A)	3 dB(A)	16 l/s	1/4 inch	M8 mm	ISO 11148-6	2006/42/EC		10 mm	3 m/s²
LTC39-2R28-13E10-LO4	8431062082	10 ft lb	20 ft lb	700 r/min	4.85 lb	475 mm	13 mm									81 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²	Offset	Yes	100 psig	Angle	Yes	Yes	92 dB(A)	3 dB(A)	16 l/s	1/4 inch	M8 mm	ISO 11148-6	2006/42/EC		10 mm	3 m/s²
LTC38 R33-13-AO3	8431061101	11.8 ft lb	24 ft lb	430 r/min	5.8 lb	487 mm	13 mm	60 mm	19 mm	32.8 mm	52.8 mm	68.8 mm	40 mm	34 mm	16 mm	82 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²	Offset	Yes	100 psig	Angle	Yes	Yes	93 dB(A)	3 dB(A)	16 l/s	1/4 inch	M8 mm	ISO 11148-6	2006/42/EC	88.8 mm	10 mm	3 m/s²
LTC38 R34-21-LI3	8431061610	12 ft lb	25 ft lb	390 r/min	8.2 lb	578 mm	21 mm	46 mm	20 mm	16 mm	74.5 mm	44 mm	64 mm	40 mm	20 mm	78 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²	In-Line	Yes	100 psi	Angle	Yes	Yes		3 dB(A)				ISO 11148-6	2006/42/EC
LTO38 R18-11-LO5	8431062083	9.6 ft lb	13.3 ft lb	270 r/min	8 lb	497 mm	11 mm									82 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²		Yes	100 psig	Angle	Yes	Yes	93 dB(A)	3 dB(A)				ISO 11148-6	2006/42/EC					Offset
LTC39-2R28-5/16-LO5	8431061934	13 ft lb	21 ft lb	530 r/min	10.4 lb	488 mm	7.94 mm									81 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²	Offset	Yes	100 psig	Crowfoot	Yes	Yes	92 dB(A)	3 dB(A)	16 l/s	1/4 inch	M8 mm	ISO 11148-6	2006/42/EC		10 mm	3 m/s²
LTO38 R26-17-LI3	8431061254	14 ft lb	26 ft lb	200 r/min	7.1 lb	547 mm	17 mm	46 mm	12 mm	20 mm	60.3 mm	38.8 mm	45 mm	59 mm	20.1 mm	82 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²		Yes	100 psi	Angle	Yes	Yes	93 dB(A)	3 dB(A)				ISO 11148-6	2006/42/EC				16 mm	In-Line
LTO28 R6-13-LI3	8431062002	1.5 ft lb	4.4 ft lb	827 r/min	4.4 lb	0 mm										76 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²		Yes	0 psig	Straight	Yes	Yes	0 dB(A)	3 dB(A)				ISO 11148-6	2006/42/EC					In-Line
LTC39-2R18-10-LO5	8431062073	8 ft lb	15 ft lb	870 r/min	4.1 lb	452 mm	10 mm									81 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²	Offset	Yes	100 psig	Crowfoot	Yes	Yes	92 dB(A)	3 dB(A)	16 l/s	1/4 inch	M6 mm	ISO 11148-6	2006/42/EC		10 mm	3 m/s²
LTC39-2 R38-13-LO3	8431061341	12 ft lb	28 ft lb	540 r/min	5.6 lb	450 mm	13 mm									81 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²	Offset	Yes	100 psig	Crowfoot	Yes	Yes	92 dB(A)	3 dB(A)	16 l/s	1/4 inch	M8 mm	ISO 11148-6	2006/42/EC		10 mm	3 m/s²
LTC48 R65-SF15E5-LI3	8431062091	22 ft lb	48 ft lb	220 r/min	10 lb	700 mm										82 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²	In-line 8-43-24	Yes	100 psig	Crowfoot	Yes	Yes	93 dB(A)	3 dB(A)	28 l/s	1/2 inch	M10 mm	ISO 11148-6	2006/42/EC		12.5 mm	3 m/s²
LTO38 R40	8431053632	10 ft lb	29 ft lb	200 r/min	3.3 lb	354 mm										82 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²		Yes	100 psig	Straight	Yes	Yes	93 dB(A)	3 dB(A)				ISO 11148-6	2006/42/EC					In-Line
LTO 009R07-13-LO5	8431062081	2.2 ft lb	5.2 ft lb	130 r/min	2.2 lb	323 mm										75 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²		Yes	100 psi	Angle	Yes	Yes	96 dB(A)	3 dB(A)				ISO 11148-6	2006/42/EC					Offset
LTC29-2R21-T8E14-LO5	8431061552	8 ft lb	15 ft lb	500 r/min	4.4 lb	457 mm	14 mm	58.5 mm	10 mm	71.6 mm	93.6 mm	108.1 mm	44 mm	31 mm	14.5 mm	80 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²	Offset	Yes	100 psig	Angle	Yes	Yes	90 dB(A)	3 dB(A)	10 l/s	1/4 inch	M6 mm	ISO 11148-6	2006/42/EC	130.1 mm	8 mm	3 m/s²
LTC39-2 R28-12E5-LO5	8431062111	10 ft lb	21 ft lb	550 r/min	5.5 lb	490 mm	12 mm									81 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²	Offset	Yes	100 psig	Crowfoot	Yes	Yes	92 dB(A)	3 dB(A)	16 l/s	1/4 inch	M8 mm	ISO 11148-6	2006/42/EC		10 mm	3 m/s²
LTC48 R96-18-LO3	8431061521	41 ft lb	71 ft lb	210 r/min	10.4 lb	651 mm	18 mm	99 mm	32 mm	32 mm	63.2 mm	82.2 mm	62.5 mm	38 mm	19 mm	84 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²	Offset	Yes	100 psig	Angle	Yes	Yes	95 dB(A)	3 dB(A)	28 l/s	1/2 inch	M12 mm	ISO 11148-6	2006/42/EC	113.5 mm	12.5 mm	3 m/s²
LTC39-2R65-13E15-LO3	8431062012	25 ft lb	48 ft lb	305 r/min	6.6 lb	560 mm	13 mm									81 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²	Offset	Yes	100 psig	Crowfoot	Yes	Yes	92 dB(A)	3 dB(A)	16 l/s	1/4 inch	M10 mm	ISO 11148-6	2006/42/EC		10 mm	3 m/s²
LTO38 R43-10	8431053003	12 ft lb	32 ft lb	280 r/min	4.4 lb	454 mm										82 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²		Yes	100 psig	Angle	Yes	Yes	93 dB(A)	3 dB(A)				ISO 11148-6	2006/42/EC
LTO38 R40-16-LI3	8431062071	15 ft lb	30 ft lb	625 r/min	5.5 lb	0 mm										82 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²		Yes	0 psig	Crowfoot	Yes	Yes	93 dB(A)	3 dB(A)				ISO 11148-6	2006/42/EC					In-Line
LTC48 R80-21-LI3	8431061612	37 ft lb	59 ft lb	250 r/min	8.9 lb	578 mm	21 mm	46 mm	20 mm	16 mm	74.5 mm	84 mm	64 mm	40 mm	20 mm	78 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²	In-Line	Yes	100 psi	Angle	Yes	Yes		3 dB(A)				ISO 11148-6	2006/42/EC
LTC38 R34-13-LI3	8431062107	12 ft lb	25 ft lb	390 r/min	8.2 lb	578 mm	13 mm	46 mm	20 mm	16 mm	74.5 mm	44 mm	64 mm	40 mm	20 mm	78 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²	In-Line	Yes	100 psig	Crowfoot	Yes	Yes		3 dB(A)				ISO 11148-6	2006/42/EC
LTC009 R08-10-LI3	8431061372	2.9 ft lb	6 ft lb	210 r/min	2.9 lb	312 mm	10 mm	34 mm	10 mm	13.5 mm	37 mm	41 mm	35 mm	22 mm	10 mm	75 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²	In-Line	Yes	100 psi	Angle	Yes	Yes		3 dB(A)				ISO 11148-6	2006/42/EC
LTC009 R07-10-LO3	8431061494	2.2 ft lb	5 ft lb	250 r/min	3.6 lb	304 mm	10 mm	59.5 mm	10 mm	14.55 mm	32.8 mm	42.8 mm	36.5 mm	22 mm	10 mm	75 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²	Offset	Yes	100 psig	Angle	Yes	Yes	86 dB(A)	3 dB(A)	6 l/s	1/4 inch	M5 mm	ISO 11148-6	2006/42/EC	61.1 mm	6 mm	3 m/s²
LTC39-2R49-13-LO5	8431062048	18 ft lb	36 ft lb	360 r/min	6 lb	508 mm	13 mm									81 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²	Offset	Yes	100 psig	Angle	Yes	Yes	92 dB(A)	3 dB(A)	16 l/s	1/4 inch	M10 mm	ISO 11148-6	2006/42/EC		10 mm	3 m/s²
LTC48 R56-17-AO3	8431061106	18 ft lb	41 ft lb	400 r/min	8.7 lb	619 mm	17 mm	66 mm	19 mm	45.1 mm	67.6 mm	87.2 mm	45 mm	39.2 mm	19.5 mm	84 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²	Offset	Yes	100 psig	Angle	Yes	Yes	95 dB(A)	3 dB(A)	28 l/s	1/2 inch	M10 mm	ISO 11148-6	2006/42/EC	109.7 mm	12.5 mm	3 m/s²
LTC28 R22-12-LI3	8431061608	8 ft lb	16 ft lb	345 r/min	4 lb	433 mm	12 mm	34 mm	15 mm	12.5 mm	45.5 mm	71 mm	35 mm	30 mm	13 mm	76 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²	In-Line	Yes	100 psi	Crowfoot	Yes	Yes		3 dB(A)				ISO 11148-6	2006/42/EC
LTO38 R43-14-LI3	8431061710	10 ft lb	31 ft lb	220 r/min	7.1 lb	522 mm	14 mm	46 mm	18 mm	17 mm	41 mm	38.5 mm	45 mm	50 mm	15 mm	82 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²		Yes	100 psi	Angle	Yes	Yes	93 dB(A)	3 dB(A)				ISO 11148-6	2006/42/EC				12 mm	In-Line
LTO38 R35-12-LI3	8431061709	10 ft lb	25 ft lb	220 r/min	6.4 lb	519 mm	12 mm	43 mm	11 mm	17.5 mm	43.7 mm	29.3 mm	40 mm	50 mm	15 mm	82 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²		Yes	100 psi	Angle	Yes	Yes	93 dB(A)	3 dB(A)				ISO 11148-6	2006/42/EC				10.4 mm	In-Line
LTO38 R26-13-LI3	8431061250	11 ft lb	22 ft lb	220 r/min	6.7 lb	536 mm	13 mm	46 mm	11 mm	20.8 mm	52 mm	47.3 mm	45 mm	55 mm	17.2 mm	82 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²		Yes	100 psi	Angle	Yes	Yes	93 dB(A)	3 dB(A)				ISO 11148-6	2006/42/EC				12.5 mm	In-Line
LTC39-2R50-13SFD-LI5	8431062105	16 ft lb	44 ft lb	240 r/min	8.8 lb	570 mm										81 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²	In-Line	Yes	100 psig	Angle	Yes	Yes	92 dB(A)	3 dB(A)	16 l/s	1/4 inch		ISO 11148-6	2006/42/EC		10 mm				60 Nm	22 Nm
LTC38 R28-12-LI3	8431061609	10 ft lb	20 ft lb	470 r/min	4 lb	493 mm	12 mm	34 mm	15 mm	12.5 mm	45.5 mm	71 mm	35 mm	30 mm	13 mm	78 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²	In-Line	Yes	100 psi	Angle	Yes	Yes		3 dB(A)				ISO 11148-6	2006/42/EC
LTC29-2R11-SQ14-LO5	8431062099	4.4 ft lb	8.1 ft lb	850 r/min	4.4 lb	415 mm	14 mm									80 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²	Offset	Yes	100 psig	Crowfoot	Yes	Yes	90 dB(A)	3 dB(A)	10 l/s	1/4 inch	M5 mm	ISO 11148-6	2006/42/EC		8 mm	3 m/s²
LTO28 R15-10-LI3	8431061246	4 ft lb	11 ft lb	400 r/min	4.4 lb	397 mm	10 mm	32 mm	12 mm	11 mm	27.9 mm	26.1 mm	33.5 mm	32 mm	10.3 mm	76 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²		Yes	100 psi	Angle	Yes	Yes		3 dB(A)				ISO 11148-6	2006/42/EC				8 mm	In-Line
LTO38 R32-10-LI4	8431061338	15 ft lb	30 ft lb	220 r/min	7.1 lb	494 mm										82 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²		Yes	100 psi	Crowfoot	Yes	Yes	93 dB(A)	3 dB(A)				ISO 11148-6	2006/42/EC					In-Line
LTC28 R18-10-LI3	8431061602	7 ft lb	13 ft lb	386 r/min	4 lb	421 mm	10 mm	34 mm	15 mm	12.5 mm	36.7 mm	59.2 mm	35 mm	22 mm	10 mm	76 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²	In-Line	Yes	100 psi	Angle	Yes	Yes		3 dB(A)				ISO 11148-6	2006/42/EC
LTO28 R19-10-LI3	8431061707	6 ft lb	14 ft lb	350 r/min	4.2 lb	402 mm	10 mm	34 mm	14 mm	13 mm	31.9 mm	29.7 mm	35 mm	38 mm	11.2 mm	82 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²		Yes	100 psi	Angle	Yes	Yes	93 dB(A)	3 dB(A)				ISO 11148-6	2006/42/EC				8 mm	In-Line
LTC009 R14-10-LI3	8431061356	3.6 ft lb	10 ft lb	175 r/min	3.3 lb	332 mm	10 mm	34 mm	10 mm	15 mm	52 mm	54.3 mm	35 mm	31 mm	14.5 mm	75 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²	In-Line	Yes		Angle	Yes	Yes		3 dB(A)				ISO 11148-6	2006/42/EC
LTC39-2R60-13-LO5	8431062033	22 ft lb	44 ft lb	305 r/min	7.3 lb	590 mm	13 mm									81 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²	Offset	Yes	100 psig	Crowfoot	Yes	Yes	92 dB(A)	3 dB(A)	16 l/s	1/4 inch	M10 mm	ISO 11148-6	2006/42/EC		10 mm	3 m/s²
LTC39-2R23-14-LO5	8431061971	7 ft lb	17 ft lb	530 r/min	5.5 lb	515 mm	14 mm									81 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²	Offset	Yes	100 psig	Angle	Yes	Yes	92 dB(A)	3 dB(A)	16 l/s	1/4 inch	M6 mm	ISO 11148-6	2006/42/EC		10 mm	3 m/s²
LTC39-2R28-12-LO5	8431061508	13 ft lb	21 ft lb	560 r/min	5.6 lb	488 mm	12 mm	69.5 mm	15 mm	62 mm	84 mm	97 mm	44 mm	30 mm	13 mm	81 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²	Offset	Yes	100 psig	Crowfoot	Yes	Yes	92 dB(A)	3 dB(A)	16 l/s	1/4 inch	M8 mm	ISO 11148-6	2006/42/EC	119 mm	10 mm	3 m/s²
LTO38 R40-17-LO3	8431061911	16 ft lb	30 ft lb	200 r/min	6.6 lb	473 mm	17 mm									82 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²		Yes	100 psig	Crowfoot	Yes	Yes	93 dB(A)	3 dB(A)				ISO 11148-6	2006/42/EC					Offset
LTC48 R105-24-LI3	8431062054	37 ft lb	77 ft lb	162 r/min	11.2 lb	651 mm										84 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²	In-Line	Yes	100 psi	Crowfoot	Yes	Yes	95 dB(A)	3 dB(A)				ISO 11148-6	2006/42/EC
LTC39-2R16-14SFE12-LO5	8433232390	6.6 ft lb	11.8 ft lb	870 r/min	5.5 lb	477 mm	14 mm									81 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²	Offset	Yes	100 psig	Crowfoot	Yes	Yes	92 dB(A)	3 dB(A)	16 l/s	1/4 inch	M6 mm	ISO 11148-6	2006/42/EC		10 mm	3 m/s²
LTC39-2R50-15E8-LO4	8431062085	22 ft lb	37 ft lb	300 r/min	7.3 lb	575 mm	15 mm									81 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²	Offset	Yes	100 psig	Crowfoot	Yes	Yes	92 dB(A)	3 dB(A)	16 l/s	1/4 inch	M10 mm	ISO 11148-6	2006/42/EC		10 mm	3 m/s²
LTO28 R17-13-LI3	8431061248	6 ft lb	13 ft lb	350 r/min	4.2 lb	415 mm	13 mm	34 mm	11 mm	14.5 mm	36.3 mm	32.3 mm	35 mm	38 mm	12.4 mm	76 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²		Yes	100 psi	Angle	Yes	Yes		3 dB(A)				ISO 11148-6	2006/42/EC				8.5 mm	In-Line
LTC48 R135-22-LI3	8431061615	77 ft lb	100 ft lb	90 r/min	10.2 lb	651 mm	22 mm	46 mm	33 mm	14 mm	77.5 mm	84 mm	64 mm	40 mm	20 mm	84 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²	In-Line		100 psi	Angle	Yes	Yes	95 dB(A)	3 dB(A)				ISO 11148-6	2006/42/EC
LTO28 R12-12-LO5	8431061805	4.4 ft lb	9 ft lb	470 r/min	4.4 lb	402 mm	12 mm	66.5 mm	11 mm	51 mm	73 mm	84.9 mm	44 mm		11.9 mm	76 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²		Yes	100 psi	Angle	Yes	Yes		3 dB(A)				ISO 11148-6	2006/42/EC	106.9 mm			8 mm	Offset
LTC39-2 R28-13E15-LO5	8431061537	12 ft lb	12 ft lb	560 r/min	5 lb	500 mm	13 mm									81 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²	Offset	Yes	100 psig	Crowfoot	Yes	Yes	92 dB(A)	3 dB(A)	16 l/s	1/4 inch	M8 mm	ISO 11148-6	2006/42/EC		10 mm	3 m/s²
LTC39-2R40-14-LO3	8431061511	16 ft lb	29 ft lb	460 r/min	5.3 lb	452 mm	14 mm	77.8 mm	18 mm	24.8 mm	46.8 mm	61.3 mm	44 mm	31 mm	14.5 mm	81 dB(A)	ISO15744	ISO28927-2	<2.5 m/s²	Offset	Yes	100 psig	Crowfoot	Yes	Yes	92 dB(A)	3 dB(A)	16 l/s	1/4 inch	M8 mm	ISO 11148-6	2006/42/EC	83.3 mm	10 mm	3 m/s²
