气动直柄扳手LTD系列

所属品牌：阿特拉斯·科普柯Atlas Copco

产品型号：LTD13/28/38/48

Atlas阿特拉斯气动直柄扳手可以给您带来超高工作效率和的扭矩精度。Atlas LTD13/28/38/48直柄扳手采用 LTV 角向扳手的动力系统和离合器。可以实现快速旋入和准确的拧紧，大大的提升了生产效率。并且阿特拉斯直柄扳手采用了花键反作用杆连接技术，可以实现扳手的固定装配。

点我询价

线上咨询

商品描述
商品询价热度

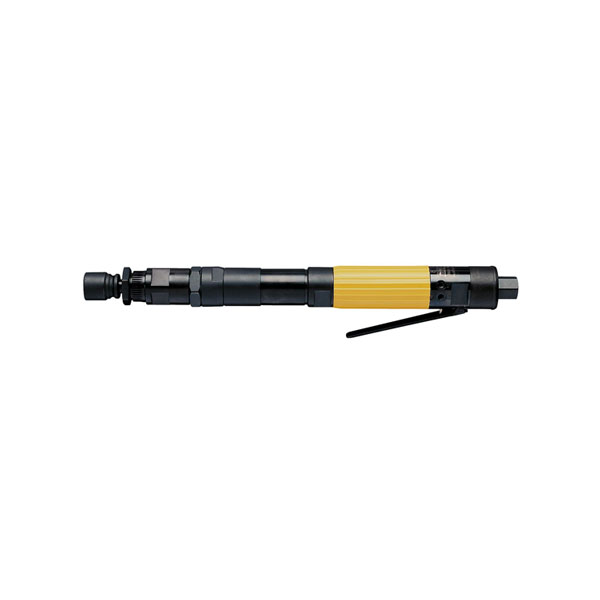

Atlas阿特拉斯气动直柄扳手LTD13/28/38/48

气动直柄扳手

Atlas LTD气动直柄扳手特点

快速旋入节约时间

大功率马达

空气信号输出指示操作完成

提供您需要的选项，满足您的要求

超高工作效率和的精度

高扭矩准确度

超薄设计实现稳定、简洁的多轴设计

阿特拉斯Atlas LTD气动直柄扳手各型号的技术参数

Title	ID	螺栓尺寸	方头驱动器	扭矩范围软接头值>	扭矩范围软接头值<	空载速度	重量	长度	CS 距离	空转速度下的空气消耗量	推荐的软管尺寸	进气口螺纹	声压	声音标准	经过 EAC 认证	EC 标准	工作压力<	断气式	声音不确定度	EU 指令	声功率	ATEX	ATEX 代码
LTD38 N30F-RE	8431053538	M8 mm	1/2 inch	10 ft lb	21 ft lb	820 r/min	5.0 lb	521 mm	20 mm	42 cfm	10 mm	1/4 inch	79 dB(A)	ISO15744	Yes	ISO 11148-6	100 psi	Yes	3 dB(A)	2006/42/EC
LTD38 R32F-RR	8431070432	M8 mm	1/2 inch	13 ft lb	24 ft lb	560 r/min	5.5 lb	482 mm	21 mm	34 cfm	10/16 mm		77 dB(A)	ISO15744	Yes	ISO 11148-6	100 psi	Yes	3 dB(A)	2006/42/EC
LTD28 R20-RE	8431053451	M6-8 mm	3/8 inch	7 ft lb	15 ft lb	520 r/min	2.9 lb	383 mm	20 mm	17 cfm	10 mm	1/4 inch	76 dB(A)	ISO15744	Yes	ISO 11148-6	100 psi	Yes	3 dB(A)	2006/42/EC
LTD28 R8-RR	8431070380	M5-6 mm	3/8 inch	2 ft lb	6 ft lb	1100 r/min	2.6 lb	294 mm	20 mm	17 cfm	10/13 mm		<70 dB(A)	ISO15744	Yes	ISO 11148-6		Yes	3 dB(A)	2006/42/EC
LTD38 N30-RE	8431053504	M8 mm	1/2 inch	10 ft lb	21 ft lb	820 r/min	4.8 lb	414 mm	20 mm	34 cfm	10 mm	1/4 inch	79 dB(A)	ISO15744	Yes	ISO 11148-6	100 psi	Yes	3 dB(A)	2006/42/EC
LTD28 R16F-50-RR	8431070381	M8 mm	3/8 inch	6 ft lb	12 ft lb	610 r/min	4 lb	446 mm	20 mm	17 cfm	10/13 mm		<70 dB(A)	ISO15744		ISO11148-6	102 psi	Yes	3 dB(A)	2006/42/EC
LTD38 N44F-RE	8431053531	M8-10 mm	1/2 inch	13 ft lb	32 ft lb	580 r/min	5.0 lb	521 mm	20 mm	42 cfm	10 mm	1/4 inch	79 dB(A)	ISO15744	Yes	ISO 11148-6	100 psi	Yes	3 dB(A)	2006/42/EC
LTD28 N21F-RE	8431053439	M6 mm	3/8 inch	7 ft lb	15 ft lb	570 r/min	3.5 lb	466 mm	20 mm	19 cfm	10 mm	1/4 inch	76 dB(A)	ISO15744	Yes	ISO 11148-6	100 psi	Yes	3 dB(A)	2006/42/EC
LTD48 R81-RE	8431063712	M12 mm	1/2 inch	24 ft lb	60 ft lb	320 r/min	6.8 lb	582 mm	30 mm	59 cfm	12.5 mm	1/2 inch	84 dB(A)	ISO15744	Yes	ISO 11148-6	100 psi	Yes	3 dB(A)	2006/42/EC	95 dB(A)
LTD48 R65-RE	8431063707	M10 mm	1/2 inch	20 ft lb	48 ft lb	400 r/min	6.8 lb	582 mm	30 mm	59 cfm	12.5 mm	1/2 inch	84 dB(A)	ISO15744	Yes	ISO 11148-6	100 psi	Yes	3 dB(A)	2006/42/EC	95 dB(A)
LTD38 R32-RE	8431053452	M8 mm	1/2 inch	13 ft lb	24 ft lb	560 r/min	4.6 lb	441 mm	20 mm	34 cfm	10 mm	1/4 inch	82 dB(A)	ISO15744	Yes	ISO 11148-6	100 psi	Yes	3 dB(A)	2006/42/EC	93 dB(A)
LTD38 R38-RE	8431053578	M8-10 mm	1/2 inch	14 ft lb	28 ft lb	480 r/min	4.6 lb	441 mm	20 mm	34 cfm	10 mm	1/4 inch	82 dB(A)	ISO15744	Yes	ISO 11148-6	100 psi	Yes	3 dB(A)	2006/42/EC	93 dB(A)
LTD38 R27F-RE	8431053565	M8 mm	1/2 inch	10 ft lb	20 ft lb	670 r/min	5.5 lb	546 mm	20 mm	34 cfm	10 mm	1/4 inch	82 dB(A)	ISO15744	Yes	ISO 11148-6	100 psi	Yes	3 dB(A)	2006/42/EC	93 dB(A)
LTD38 R27-RE	8431053453	M8 mm	1/2 inch	10 ft lb	20 ft lb	670 r/min	4.6 lb	441 mm	20 mm	34 cfm	10 mm	1/4 inch	82 dB(A)	ISO15744	Yes	ISO 11148-6	100 psi	Yes	3 dB(A)	2006/42/EC	93 dB(A)
LTD48 R81F-RE	8431063723	M12 mm	1/2 inch	24 ft lb	60 ft lb	320 r/min	7.7 lb	700 mm	30 mm	59 cfm	12.5 mm	1/2 inch	84 dB(A)	ISO15744	Yes	ISO 11148-6	100 psi	Yes	3 dB(A)	2006/42/EC	95 dB(A)
LTD28 R22-RE	8431053454	M6-8 mm	3/8 inch	7 ft lb	16 ft lb	125 r/min	2.9 lb	383 mm	20 mm	17 cfm	10 mm	1/4 inch	76 dB(A)	ISO15744	Yes	ISO 11148-6	100 psi	Yes	3 dB(A)	2006/42/EC
LTD38 R40-ATEX	8431053460	M10 mm	1/2 inch			175 r/min	4.8 lb	453 mm		34 cfm		1/4 inch	82 dB(A)	ISO15744	Yes	EN 13463-1:2009, ISO 11148-6	100 psig	Yes	3 dB(A)	2006/42/EC, 2014/34/EU	93 dB(A)	Yes	EX II 3 GD IIB 135°C (T4)
LTD48 R65F-RR	8431070450	M10 mm	1/2 inch	20 ft lb	48 ft lb	400 r/min	8.2 lb	522 mm	28 mm	63 cfm	12.5/16 mm		80 dB(A)	ISO15744	Yes	ISO 11148-6	100 psi	Yes	3 dB(A)	2006/42/EC
LTD28 R16-RE	8431053465	M6 mm	3/8 inch	6 ft lb	12 ft lb	610 r/min	2.9 lb	383 mm	20 mm	17 cfm	10 mm	1/4 inch	76 dB(A)	ISO15744	Yes	ISO 11148-6	100 psi	Yes	3 dB(A)	2006/42/EC
LTD28 N18F-RE	8431053427	M6 mm	3/8 inch	6 ft lb	13 ft lb	780 r/min	3.5 lb	466 mm	20 mm	19 cfm	10 mm	1/4 inch	76 dB(A)	ISO15744		ISO 11148-6	100 psi	Yes	3 dB(A)	2006/42/EC
LTD48 R65F-RE	8431063717	M10 mm	1/2 inch	20 ft lb	48 ft lb	400 r/min	7.7 lb	700 mm	30 mm	59 cfm	12.5 mm	1/2 inch	84 dB(A)	ISO15744	Yes	ISO 11148-6	100 psi	Yes	3 dB(A)	2006/42/EC	95 dB(A)
LTD38 R32F-RE	8431053591	M8 mm	1/2 inch	13 ft lb	24 ft lb	560 r/min	5.5 lb	546 mm	20 mm	34 cfm	10 mm	1/4 inch	82 dB(A)	ISO15744	Yes	ISO 11148-6	100 psi	Yes	3 dB(A)	2006/42/EC	93 dB(A)
LTD28 R20F-RE	8431053437	M6-8 mm	3/8 inch	7 ft lb	15 ft lb	570 r/min	3.7 lb	491 mm	20 mm	17 cfm	10 mm	1/4 inch	76 dB(A)	ISO15744	Yes	ISO 11148-6	100 psi	Yes	3 dB(A)	2006/42/EC
LTD28 R16F-RR	8431070386	M6 mm	3/8 inch	6 ft lb	12 ft lb	620 r/min	3.7 lb	421 mm	20 mm	17 cfm	10/13 mm		<70 dB(A)	ISO15744	Yes	ISO 11148-6	100 psi	Yes	3 dB(A)	2006/42/EC
LTD28 R20-RR	8431070383	M6-8 mm	3/8 inch	7 ft lb	15 ft lb	520 r/min	2.9 lb	313 mm	20 mm	17 cfm	10/13 mm		<70 dB(A)	ISO15744	Yes	ISO 11148-6	100 psi	Yes	3 dB(A)	2006/42/EC
LTD13 R05-RR	8431053305	M3-5 mm	1/4 inch	1.1 ft lb	3.7 ft lb	850 r/min	1.6 lb	197 mm	16 mm	15 cfm	8 mm	1/8 inch	77 dB(A)	ISO15744		ISO 11148-6	100 psi	Yes	3 dB(A)	2006/42/EC
LTD38 R38F-RR	8431070434	M8-10 mm	1/2 inch	14 ft lb	28 ft lb	480 r/min	5.5 lb	482 mm	21 mm	34 cfm	10/16 mm		77 dB(A)	ISO15744	Yes	ISO 11148-6	100 psi	Yes	3 dB(A)	2006/42/EC
LTD13 R04-RR	8431053304	M3-5 mm	1/4 inch	1.1 ft lb	3.7 ft lb	850 r/min	1.6 lb	197 mm	16 mm	15 cfm	8 mm	1/8 inch	77 dB(A)	ISO15744	Yes	ISO 11148-6	100 psi	Yes	3 dB(A)	2006/42/EC
LTD28 R16F-RE	8431053485	M6 mm	3/8 inch	6 ft lb	12 ft lb	620 r/min	3.7 lb	491 mm	20 mm	17 cfm	10 mm	1/4 inch	76 dB(A)	ISO15744	Yes	ISO 11148-6	100 psi	Yes	3 dB(A)	2006/42/EC
LTD48 R81-RR	8431070448	M12 mm	1/2 inch	24 ft lb	60 ft lb	330 r/min	7.7 lb	410 mm	28 mm	63 cfm	12.5/16 mm		80 dB(A)	ISO15744	Yes	ISO 11148-6	100 psi	Yes	3 dB(A)	2006/42/EC
LTD38 R27F-RR	8431070430	M8 mm	1/2 inch	10 ft lb	20 ft lb	670 r/min	5.5 lb	482 mm	21 mm	34 cfm	10/16 mm		77 dB(A)	ISO15744	Yes	ISO 11148-6	100 psi	Yes	3 dB(A)	2006/42/EC
LTD28 R8-RE	8431053461	M5-6 mm	3/8 inch	2 ft lb	6 ft lb	1100 r/min	2.6 lb	363 mm	20 mm	17 cfm	10 mm	1/4 inch	76 dB(A)	ISO15744	Yes	ISO 11148-6	100 psi	Yes	3 dB(A)	2006/42/EC
LTD28 R8F-RR	8431070384	M5-6 mm	3/8 inch	2 ft lb	6 ft lb	1100 r/min	3.5 lb	401 mm	20 mm	17 cfm	10/13 mm		<70 dB(A)	ISO15744	Yes	ISO 11148-6	100 psi	Yes	3 dB(A)	2006/42/EC
LTD38 N55-RE	8431053520	M10 mm	1/2 inch	20 ft lb	40 ft lb	470 r/min	4.8 lb	487 mm	20 mm	42 cfm	10 mm	1/4 inch	79 dB(A)	ISO15744	Yes	ISO 11148-6	100 psi	Yes	3 dB(A)	2006/42/EC
LTD28 N18-RE	8431053408	M6 mm	3/8 inch	6 ft lb	13 ft lb	780 r/min	2.6 lb	358 mm	20 mm	19 cfm	10 mm	1/4 inch	76 dB(A)	ISO15744	Yes	ISO 11148-6	100 psi	Yes	3 dB(A)	2006/42/EC
LTD38 R38-RR	8431070426	M8-10 mm	1/2 inch	14 ft lb	28 ft lb	480 r/min	4.6 lb	377 mm	21 mm	34 cfm	10/16 mm		77 dB(A)	ISO15744	Yes	ISO 11148-6	100 psi	Yes	3 dB(A)	2006/42/EC
LTD48 R81F-RR	8431070452	M12 mm	1/2 inch	24 ft lb	60 ft lb	330 r/min	8.2 lb	522 mm	28 mm	63 cfm	12.5/16 mm		80 dB(A)	ISO15744	Yes	ISO 11148-6	100 psi	Yes	3 dB(A)	2006/42/EC
LTD48 R65-RR	8431070446	M10 mm	1/2 inch	20 ft lb	48 ft lb	400 r/min	7.7 lb	410 mm	28 mm	63 cfm	12.5/16 mm		80 dB(A)	ISO15744	Yes	ISO 11148-6	100 psi	Yes	3 dB(A)	2006/42/EC
LTD13 R08-RR	8431053306	M3-5 mm	1/4 inch	1.1 ft lb	6 ft lb	500 r/min	1.7 lb	197 mm	16 mm	15 cfm	8 mm	1/8 inch	77 dB(A)	ISO15744	Yes	ISO 11148-6	100 psi	Yes	3 dB(A)	2006/42/EC
LTD38 R32-RR	8431070424	M8 mm	1/2 inch	13 ft lb	24 ft lb	560 r/min	4.6 lb	377 mm	21 mm	34 cfm	10/16 mm		77 dB(A)	ISO15744	Yes	ISO 11148-6	100 psi	Yes	3 dB(A)	2006/42/EC
LTD38 R47F-RE	8431053599	M8-10 mm	1/2 inch	16 ft lb	35 ft lb	380 r/min	5.9 lb	625 mm	23 mm	34 cfm	10 mm	1/4 inch	82 dB(A)	ISO15744	Yes	ISO 11148-6	100 psi	Yes	3 dB(A)	2006/42/EC	93 dB(A)
LTD38 R27-RR	8431070422	M8 mm	1/2 inch	10 ft lb	20 ft lb	670 r/min	4.6 lb	377 mm	21 mm	34 cfm	10/16 mm		77 dB(A)	ISO15744	Yes	ISO 11148-6	100 psi	Yes	3 dB(A)	2006/42/EC
LTD38 R47-RE	8431053583	M8-10 mm	1/2 inch	16 ft lb	35 ft lb	380 r/min	5.1 lb	513 mm	20 mm	42 cfm	10 mm	1/4 inch	82 dB(A)	ISO15744	Yes	ISO 11148-6	100 psi	Yes	3 dB(A)	2006/42/EC	93 dB(A)
LTD38 R34-ATEX	8431053420					280 r/min	5.1 lb	513 mm					82 dB(A)	ISO15744	Yes	EN 13463-1:2009, ISO 11148-6	100 psig	Yes		2006/42/EC, 2014/34/EU		Yes	EX II 3 GD IIB 135°C (T4)
LTD38 R47F-RR	8431070436	M8-10 mm	1/2 inch	16 ft lb	35 ft lb	380 r/min	5.9 lb	566 mm	23 mm	34 cfm	10/16 mm		77 dB(A)	ISO15744	Yes	ISO 11148-6	100 psi	Yes	3 dB(A)	2006/42/EC
LTD29 R14-ATEX	8431063162					900 r/min	1.5 kg	284 mm		21 cfm	10 mm	1/4 inch	80 dB(A)	ISO15744	Yes	EN 13463-1:2009, ISO 11148-6	100 psig	Yes	3 dB(A)	2006/42/EC, 2014/34/EU		Yes	EX II 3 GD IIB 135°C (T4)
LTD28 R16-RR	8431070382	M6 mm	3/8 inch	6 ft lb	12 ft lb	610 r/min	2.9 lb	313 mm	20 mm	17 cfm	10/13 mm		<70 dB(A)	ISO15744	Yes	ISO 11148-6	100 psi	Yes		2006/42/EC
LTD28 R20F-RR	8431070388	M6-8 mm	3/8 inch	7 ft lb	15 ft lb	570 r/min	3.7 lb	421 mm	20 mm	17 cfm	10/13 mm		<70 dB(A)	ISO15744	Yes	ISO 11148-6	100 psi	Yes	3 dB(A)	2006/42/EC
