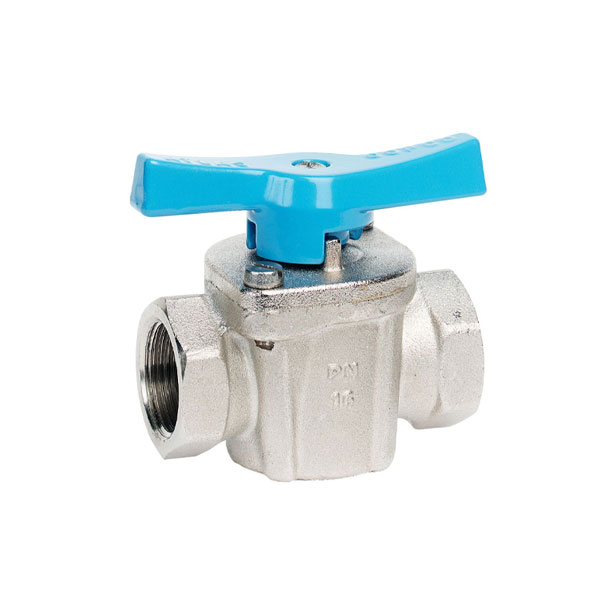

Atlas阿特拉斯BAL阀
Atlas BAL阀优势特点
风量大
易于移动
易于操作
漆包铝手柄
配备一个可锁手柄
全径阀符合DIN标准
外壳和阀球采用镀铬热冲压黄铜制成
阿特拉斯BAL阀各型号技术参数
型号 | ID | 手柄类型 | 连接螺纹 BSP | WEEE | 孔 D | H | I | 气流 (0.2 bar ∆P) | 气流 (0.5 bar ∆P) | 气流 (3 psi ∆P) | 气流 (7 psi ∆P) | 连接螺纹 NPT | L |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Valve | 8202030629 | Straight handle | 1/2 inch | 0 | 15 mm | 53 mm | 94 mm | ||||||
| Valve | 8202030645 | Straight handle | 1 inch | 0 | 25 mm | 67.5 mm | 122 mm | ||||||
| Valve | 8202030603 | Straight handle | 1/4 inch | 0 | 8 mm | 44 mm | 73 mm | ||||||
| BAL 08 | 8202030105 | Wing nut | 1/4 inch | 0 | 9.5 mm | 41 mm | 15 l/s | 24 l/s | 32 cfm | 51 cfm | |||
| Valve | 8202030630 | Straight handle | 0 | 0.6 inch | 2 inch | 3.7 inch | 1/2 inch | 2.4 inch | |||||
| BAL 25 | 8202030501 | Wing nut | 1 inch | 0 | 24.5 mm | 64 mm | |||||||
| Valve | 8202030637 | Straight handle | 3/4 inch | 0 | 20 mm | 57 mm | 94 mm | ||||||
| BAL 20 | 8202030402 | Wing nut | 3/4 inch | 0 | 19 mm | 55 mm | |||||||
| Valve | 8202030678 | Straight handle | 2 inch | 0 | 50 mm | 103 mm | 193 mm | ||||||
| BAL 15 | 8202030303 | Wing nut | 1/2 inch | 0 | 12.5 mm | 43 mm | 41 l/s | 64 l/s | 87 cfm | 136 cfm | |||
| Valve | 8202030611 | Straight handle | 3/8 inch | 0 | 10 mm | 47 mm | 73 mm | ||||||
| BAL 10 | 8202030204 | Wing nut | 3/8 inch | 0 | 9.5 mm | 41 mm | 35 l/s | 55 l/s | 74 cfm | 117 cfm | |||
| Valve | 8202030646 | Straight handle | 0 | 1 inch | 2.6 inch | 4.8 inch | 1 inch | 3.3 inch | |||||
| Valve | 8202030652 | Straight handle | 1 1/4 inch | 0 | 32 mm | 83 mm | 150 mm | ||||||
| Valve | 8202030660 | Straight handle | 1 1/2 inch | 0 | 38 mm | 87 mm | 150 mm |
