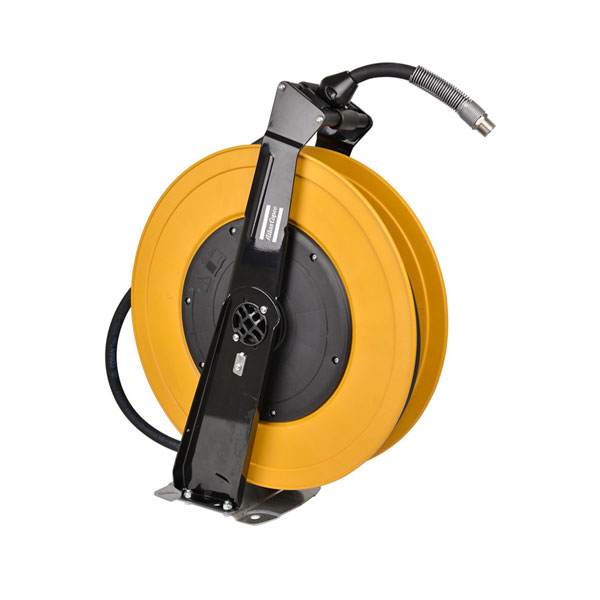

Atlas阿特拉斯HM软管卷盘
阿特拉斯HM软管卷盘优势特点
坚固耐用
气流量大
使用寿命长
轻松解除锁销功能
弹簧张力易于调节
灵活使用的旋转铰链
可同时使用BSP和NPT螺纹
可用于地板、墙壁或天花板安装。
产品范围广泛，可与所有Atlas Copco工具匹配
软管端部配有钢质螺旋软管保护装置，经久耐用。
软管不会拖在地板上，操作人员不会因此而绊倒，可保障工作场所。
Atlas HM软管卷盘各型号技术参数
| 型号 | ID | 软管类型 | 软管长度 | 软管内径 | 软管行程 | 重量 | 连接输气软管 NPT 公头 | 连接进气口软管内径 | 工作压力 | 操作温度 | EU 指令 | EC 标准 | WEEE | 经济气流（0.2 bar ∆P，伸长） | 经济气流（3 psi ∆P，伸长） | 流量（0.5 bar ∆P，伸长） | 流量（7 psi ∆P，伸长） | 连接输气软管 BSP 公头 | 气流 | 经济气流（0.2 bar ∆P，缩回） | 经济气流（3 psi ∆P，缩回） | 流量（0.5 bar ∆P，缩回） | 流量（7 psi ∆P，缩回） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HM-OPEN-12-10-NPT | 8202118346 | Rubber | 33 ft | 1/2 inch | 10 m | 26 lb | 1/2 inch | 1/2 inch | 218 psig | +14 - +140 °F | 2006/42/EC | EN ISO 12100:2010 | 0 | 13 l/s | 28 cfm | 22 l/s | 47 cfm | ||||||
| HM-LIGHT-8-12-NPT | 8202118342 | PVC/PUR | 39 ft | 5/16 inch | 12 m | 11 lb | 1/4 inch | 3/8 inch | 218 psig | +32 - +122 °F | 2006/42/EC | EN ISO 12100:2010 | 0 | 3 l/s | 6 cfm | 5 l/s | 11 cfm | ||||||
| HM-OPEN-10-15 | 8202118333 | Rubber | 15 m | 3/8 inch | 15 m | 25 lb | 12.5 mm | 202 psig | 14 - 160 °F | 2006/42/EC | EN ISO 12100:2010 | 0 | 5 l/s | 11 cfm | 9 l/s | 19 cfm | 3/8 inch | ||||||
| HM-OPEN-XL-19 | 8202118339 | Rubber | 15 m | 3/4 inch | 15 m | 62 lb | 19 mm | 202 psig | 14 - 140 °F | 2006/42/EC | EN ISO 12100:2010 | 0 | 27 l/s | 57 cfm | 44 l/s | 93 cfm | 3/4 inch | ||||||
| HM-OPEN-XL-25-NPT | 8202118351 | Rubber | 33 ft | 1 inch | 66 lb | 1 inch | 1 inch | 218 psig | +14 - +140 °F | 2006/42/EC | EN ISO 12100:2010 | 0 | 60 l/s | 127 cfm | 95 l/s | 201 cfm | |||||||
| HM-LIGHT-8-8-NPT | 8202118341 | PVC/PUR | 26 ft | 5/16 inch | 8 m | 7 lb | 1/4 inch | 3/8 inch | 174 psig | +32 - +122 °F | 2006/42/EC | EN ISO 12100:2010 | 0 | 4 l/s | 8 cfm | 7 l/s | 15 cfm | ||||||
| HM-OPEN-XL-12-20 | 8202118337 | Rubber | 20 m | 1/2 inch | 20 m | 60 lb | 12.5 mm | 202 psig | 14 - 140 °F | 2006/42/EC | EN ISO 12100:2010 | 0 | 8 l/s | 17 cfm | 14 l/s | 30 cfm | 1/2 inch | ||||||
| HM-LIGHT-8-12 | 8202118331 | PVC/PUR | 12 m | 5/16 inch | 12 m | 11 lb | 10 mm | 159 psig | 32 - 122 °F | 2006/42/EC | EN ISO 12100:2010 | 0 | 3 l/s | 6 cfm | 5 l/s | 11 cfm | 1/4 inch | ||||||
| HM-OPEN-10-20 | 8202118334 | Rubber | 20 m | 3/8 inch | 20 m | 30 lb | 12.5 mm | 202 psig | 14 - 140 °F | 2006/42/EC | EN ISO 12100:2010 | 0 | 5 l/s | 11 cfm | 7 l/s | 15 cfm | 3/8 inch | ||||||
| HM-OPEN-XL-25 | 8202118340 | Rubber | 10 m | 1 inch | 10 m | 66 lb | 25 mm | 202 psig | 14 - +140 °F | 2006/42/EC | EN ISO 12100:2010 | 0 | 60 l/s | 127 cfm | 95 l/s | 201 cfm | 1 inch | ||||||
| HM-OPEN-10-20-NPT | 8202118345 | Rubber | 66 ft | 3/8 inch | 20 m | 30 lb | 3/8 inch | 1/2 inch | 218 psig | +14 - +140 °F | 2006/42/EC | EN ISO 12100:2010 | 0 | 5 l/s | 11 cfm | 7 l/s | 15 cfm | ||||||
| HM-FLEX-L | 8202118156 | Rubber | 10 m | 1/2 inch | 10 m | 35 lb | 12.5 mm | 202 psig | 14 - 140 °F | 2006/42/EC | EN ISO 12100:2010 | 0 | 12 l/s | 25 cfm | 19 l/s | 40 cfm | 1/2 inch | 22 l/s | 11 l/s | 23 cfm | 18 l/s | 38 cfm | |
| HM LIGHT 10m NPT | 8202118096 | 30 ft | 5/16 inch | 10 lb | 1/4 inch | 0 | 15 cfm | ||||||||||||||||
| HM-OPEN-XL-19-NPT | 8202118350 | Rubber | 49 ft | 3/4 inch | 62 lb | 3/4 inch | 3/4 inch | 218 psig | +14 - +140 °F | 2006/42/EC | EN ISO 12100:2010 | 0 | 27 l/s | 57 cfm | 44 l/s | 93 cfm | |||||||
| HM Open Flex 15m BSP | 8202118110 | PUR | 15 m | 3/8 inch | 15 m | 25 lb | 275 psig | 14 - +140 °F | 2006/42/EC | EN ISO 12100 | 0 | 5 l/s | 11 cfm | 8 l/s | 17 cfm | 3/8 inch | 8 l/s | 4 l/s | 8 cfm | 7 l/s | 15 cfm | ||
| HM-OPEN-XL-12-30-NPT | 8202118349 | Rubber | 98 ft | 1/2 inch | 30 m | 61 lb | 1/2 inch | 1/2 inch | 218 psig | +14 - +140 °F | 2006/42/EC | EN ISO 12100:2010 | 0 | 8 l/s | 17 cfm | 12 l/s | 25 cfm | ||||||
| HM-LIGHT-8-8 | 8202118330 | PVC/PUR | 8 m | 5/16 inch | 8 m | 7 lb | 10 mm | 159 psig | 32 - 122 °F | 2006/42/EC | EN ISO 12100:2010 | 0 | 4 l/s | 8 cfm | 7 l/s | 15 cfm | 1/4 inch | ||||||
| HM-FLEX-L-NPT | 8202118159 | Rubber | 33 ft | 1/2 inch | 35 lb | 1/2 inch | 1/2 inch | 218 psig | +14 - +140 °F | 2006/42/EC | EN ISO 12100:2010 | 0 | 12 l/s | 25 cfm | 19 l/s | 40 cfm | 11 l/s | 23 cfm | 18 l/s | 38 cfm | |||
| HM-OPEN-XL-12-30 | 8202118338 | Rubber | 30 m | 1/2 inch | 30 m | 61 lb | 12.5 mm | 202 psig | 14 - 140 °F | 2006/42/EC | EN ISO 12100:2010 | 0 | 8 l/s | 17 cfm | 12 l/s | 25 cfm | 1/2 inch | ||||||
| HM-OPEN-10-15-NPT | 8202118344 | Rubber | 49 ft | 3/8 inch | 15 m | 25 lb | 3/8 inch | 1/2 inch | 218 psig | +14 - +140 °F | 2006/42/EC | EN ISO 12100:2010 | 0 | 5 l/s | 11 cfm | 9 l/s | 19 cfm | ||||||
| HM-OPEN-12-10 | 8202118335 | Rubber | 10 m | 1/2 inch | 10 m | 26 lb | 12.5 mm | 202 psig | 14 - 140 °F | 2006/42/EC | EN ISO 12100:2010 | 0 | 13 l/s | 28 cfm | 22 l/s | 47 cfm | 1/2 inch | ||||||
| HM Open Flex rubber 15m BSP | 8202118109 | Rubber | 15 m | 3/8 inch | 24 lb | 20 bar | 2006/42/EC | EN ISO 12100 | 0 | 6 l/s | 13 cfm | 9 l/s | 19 cfm | 3/8 inch | 8 l/s | 5 l/s | 11 cfm | 8 l/s | 17 cfm | ||||
| HM-OPEN-12-15 | 8202118336 | Rubber | 15 m | 1/2 inch | 15 m | 29 lb | 12.5 mm | 202 psig | 14 - 140 °F | 2006/42/EC | EN ISO 12100:2010 | 0 | 11 l/s | 23 cfm | 17 l/s | 36 cfm | 1/2 inch | ||||||
| HM-LIGHT-10-10-NPT | 8202118343 | PVC/PUR | 33 ft | 3/8 inch | 10 m | 10 lb | 3/8 inch | 3/8 inch | 218 psig | +32 - +122 °F | 2006/42/EC | EN ISO 12100:2010 | 0 | 6 l/s | 13 cfm | 10 l/s | 21 cfm | ||||||
| HM-OPEN-12-15-NPT | 8202118347 | Rubber | 49 ft | 1/2 inch | 15 m | 29 lb | 1/2 inch | 1/2 inch | 218 psig | +14 - +140 °F | 2006/42/EC | EN ISO 12100:2010 | 0 | 11 l/s | 23 cfm | 17 l/s | 36 cfm | ||||||
| HM Open Flex 10m BSP | 8202118112 | PUR | 10 m | 3/8 inch | 10.5 kg | 20 bar | 2006/42/EC | EN ISO 12100 | 0 | 5 l/s | 11 cfm | 8 l/s | 17 cfm | 3/8 inch | 12 l/s | 5 l/s | 11 cfm | 8 l/s | 17 cfm | ||||
| HM-LIGHT-10-10 | 8202118332 | PVC/PUR | 10 m | 3/8 inch | 10 m | 11 lb | 10 mm | 217 psig | 32 - 122 °F | 2006/42/EC | EN ISO 12100:2010 | 0 | 6 l/s | 13 cfm | 10 l/s | 21 cfm | 3/8 inch | ||||||
| HM-OPEN-XL-12-20-NPT | 8202118348 | Rubber | 66 ft | 1/2 inch | 20 m | 60 lb | 1/2 inch | 1/2 inch | 218 psig | +14 - +140 °F | 2006/42/EC | EN ISO 12100:2010 | 0 | 8 l/s | 17 cfm | 14 l/s | 30 cfm |
